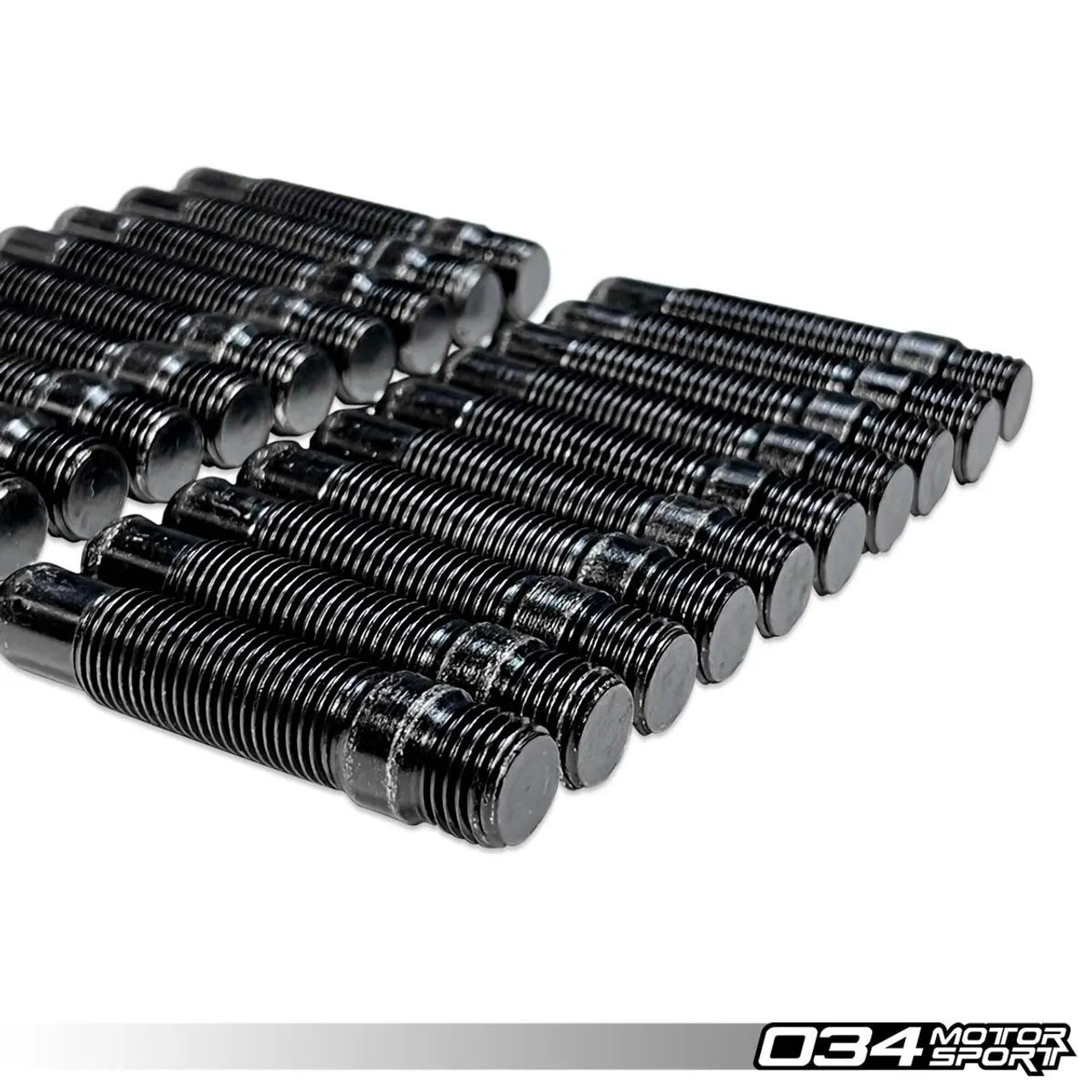

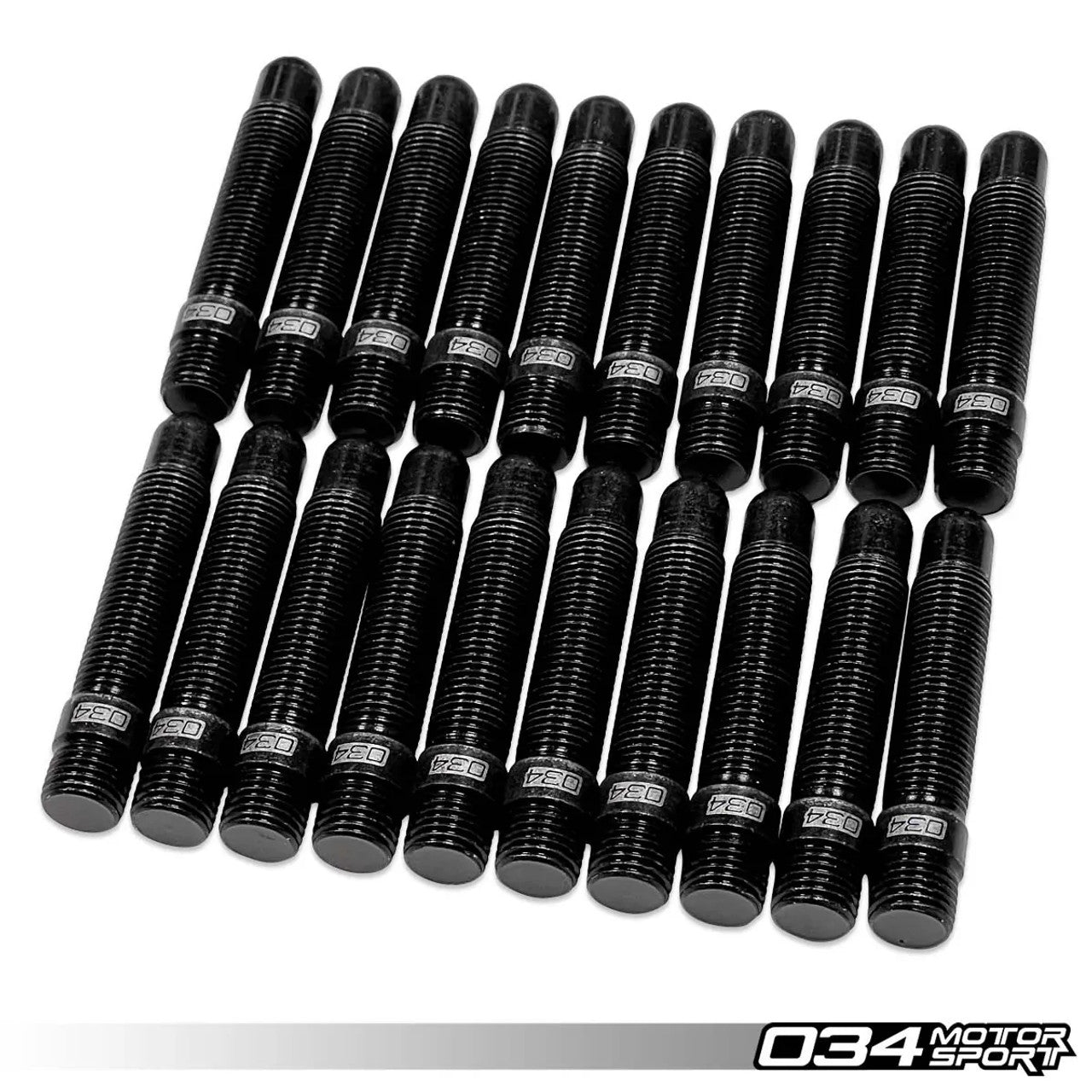

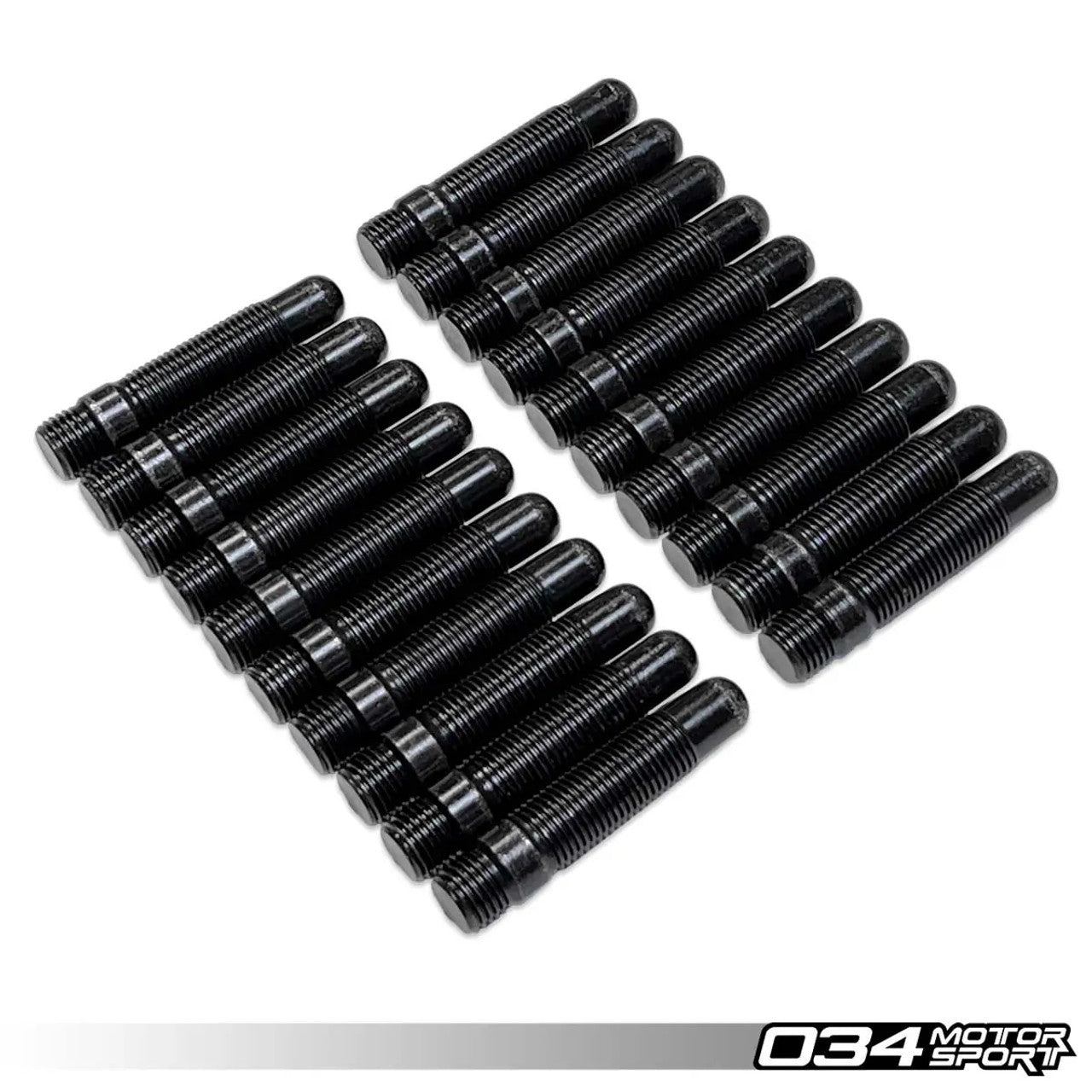

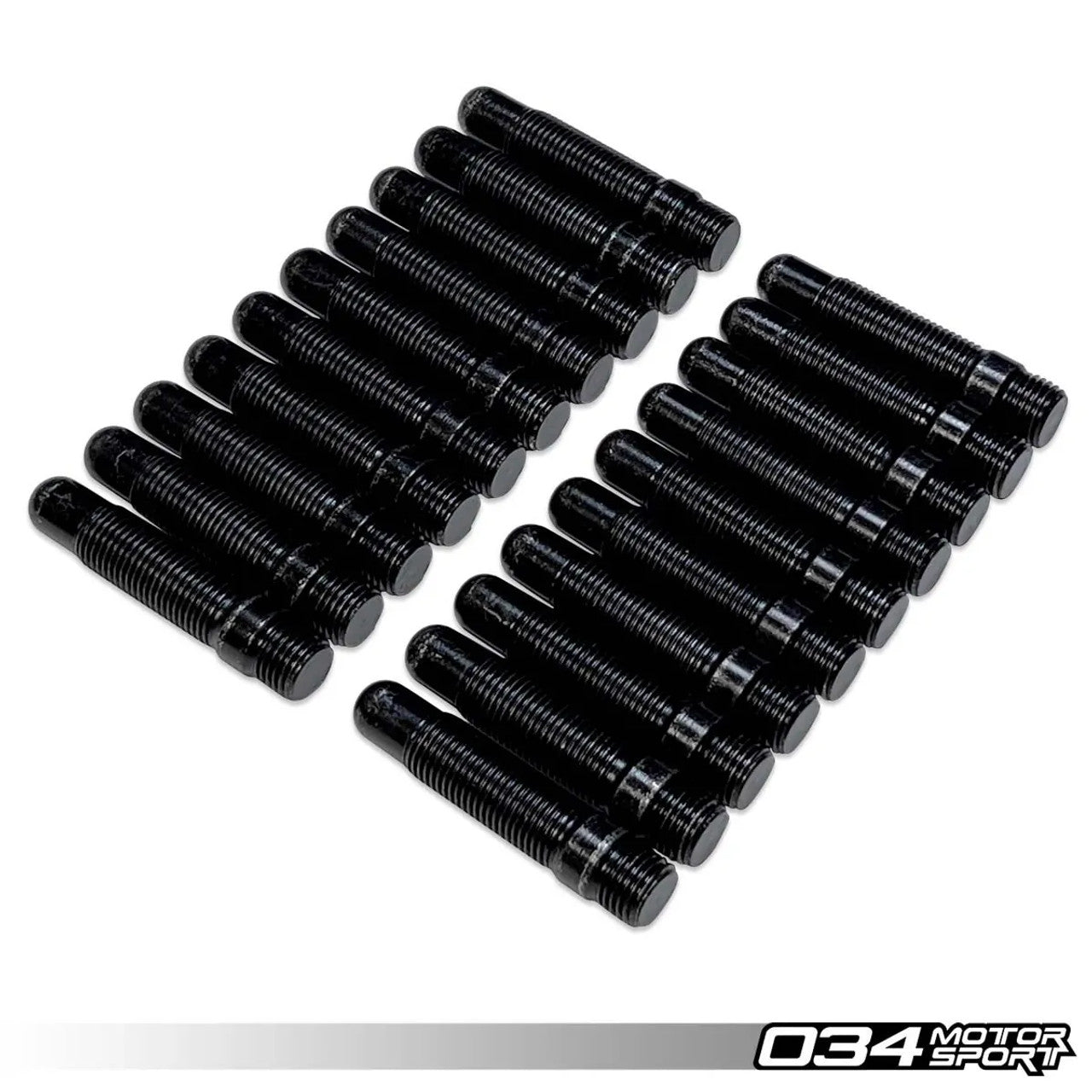

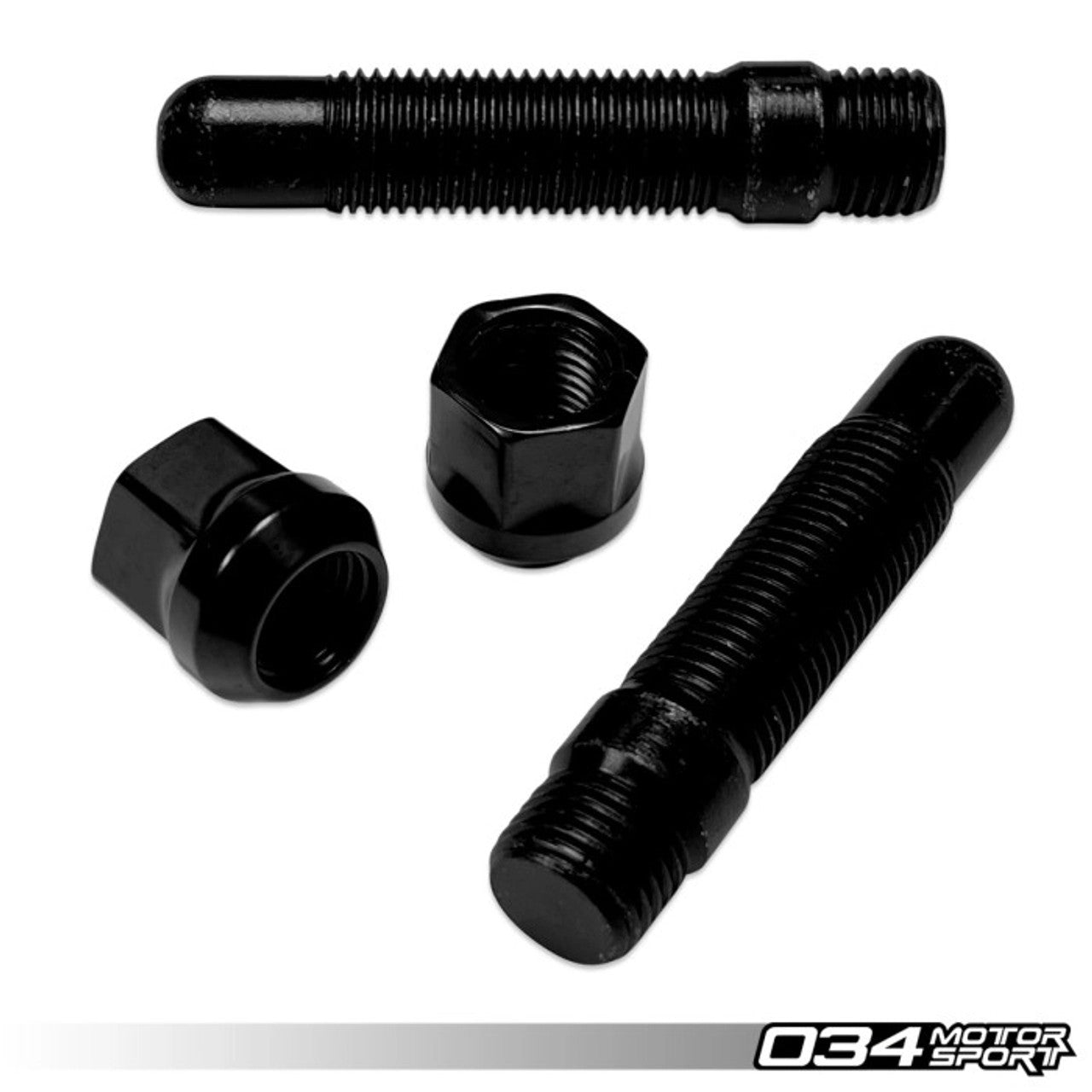

034 Motorsport Bullet Nose Stud and Nut Kit

034 Motorsport Bullet Nose Stud and Nut Kit

SKU:034-604-6003-20

Regular price £229.87
Regular price Sale price £229.87
Sale Sold out
Tax included.

Nut Type
Stud Length

The 034Motorsport Bullet Nose Stud and Nut Bundles are designed to make wheel changes easier than ever. The bullet nose design allows the wheels and nuts to self-align, making installation faster, and easier. The Bullet Nose Stud and Nut Bundles are available for all vehicles using the M14x1.5 thread pitch, perfect for virtually all Volkswagens and Audis. Manufactured from high tensile heat treated Grade 10.9 Chromoly Steel, the Bullet Nose Stud and Nut Bundles are less prone to corrosion and can withstand intense heat from braking on the track.

034Motorsport Ball Seat Wheel Nuts utilize an R13 Ball Seat Radius which are compatible with factory Audi & VW wheels and 034Motorsport ZTF wheels, and manufactured from Grade 10.9 Chromoly steel, coated in black zinc for protection from outside elements to prevent corrosion.

034Motorsport Cone Seat Wheel Nuts are designed for use with wheels that require a cone or conical seat wheel nut, and manufactured from Grade 10.9 Chromoly steel, coated in black zinc for protection from outside elements to prevent corrosion. Having wheel studs as opposed to factory wheel bolts makes for a much easier wheel installation; no more trying to balance your wheels on the hub, hoping they don’t fall or misalign when trying to thread in your wheel bolts.

Features:

  • Large Shoulder Provides Extra Strength and is Properly Sized for VAG Brake Rotor Hats
  • Bullet Nose for Fast Nut Alignment and Installation
  • Chromoly Steel, Grade 10.9
  • Heavy Duty Black Zinc Coating
  • Wheel Installation is Much Easier vs. OE Wheel Bolts (Self-Aligning!)
  • Motorsport Quality, and Appearance

Bullet Nose Stud Size Specifications:

  • M14x1.5mm Threads
  • 8mm of Unthreaded Shoulder for Brake Rotor

55mm Bullet Nose Stud Specifications::

  • 10mm Maximum Spacer Size
  • Nut Thread Length (to Hub Face) - 45mm
  • Hub Face to Stud Nose - 60mm

65mm Bullet Nose Stud Specifications:

  • 15mm Maximum Spacer Size
  • Nut Thread Length (to Hub Face) - 55mm
  • Hub Face to Stud Nose - 70mm

75mm Bullet Nose Stud Specifications:

  • 20mm Maximum Spacer Size
  • Nut Thread Length (to Hub Face) - 65mm
  • Hub Face to Stud Nose - 80mm

Radius (Ball Seat) Wheel Nut Specifications - Standard O.E. Wheels

  • Chromoly Steel, Grade 10.9
  • 14x1.5mm Threads
  • 19mm Hex Head
  • R13 Ball Seat
  • Black Zinc Plated for Protection from the Elements

Tapered (Cone Seat) Wheel Nut Specifications - Some Aftermarket Wheels

  • Chromoly Steel, Grade 10.9
  • 14x1.5mm Threads
  • 19mm Hex Head
  • Black Zinc Plated for Protection from the Elements

Please note that unless the item is listed as in stock, this is likely an item sent direct from manufacturer thus classed as a special order item. Whilst this does not normally effect delivery times, if you would like an up to date delivery estimate please contact us

View full details
Confirmed Applications
Universal Product
