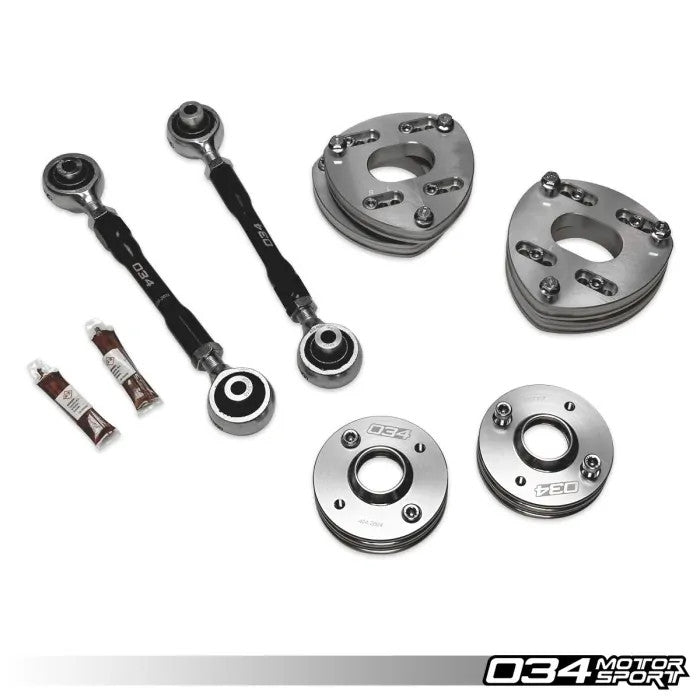

034Motorsport Suspension Lift Kit, Audi F3 Q3 & Volkswagen MK2 Tiguan

The 034Motorsport Suspension Lift Kit for Audi 8U Q3 & Volkswagen MK2 Tiguan is the ultimate solution for thrill seekers looking to improve ground clearance and lift their vehicles. The Suspension Lift Kit adds 1.3” of ride height in the front and 1.18” of ride height in the rear, resulting in a level, no-rake lifted height that significantly improves ground and fender clearance. This lift is perfect for overlanders and parking lot speed bump crawlers alike.

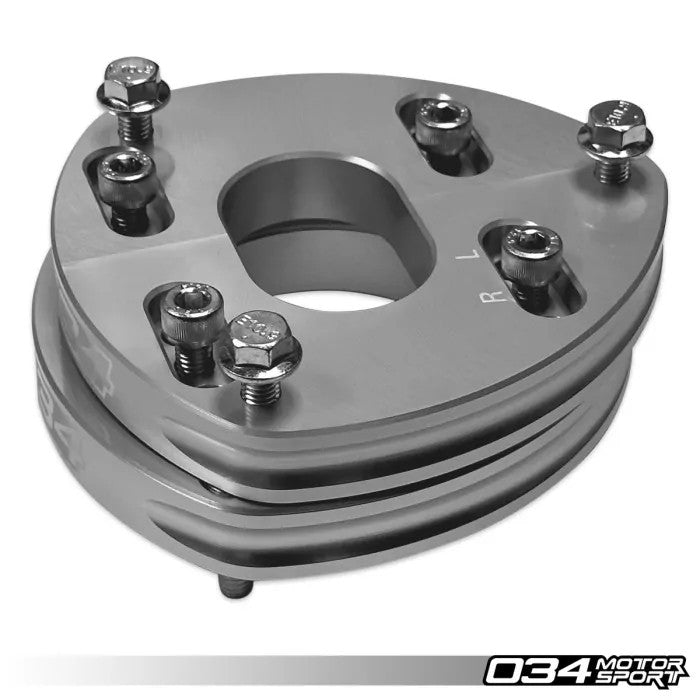

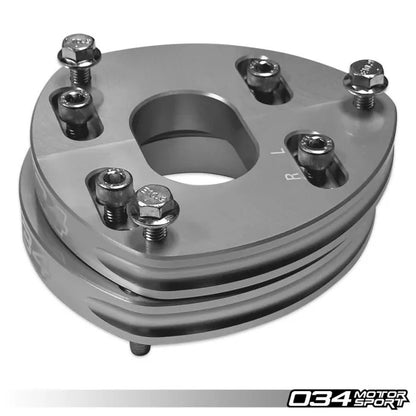

When lifting a vehicle, the suspension responds with a positive camber and caster increase, which reduces the tire’s contact patch and significantly increases tire wear, as well as altering the tire's position within the wheel well - potentially allowing the tire to contact the fender liner. The 034Motorsport Suspension Lift Kit for the Audi 8U Q3 & Volkswagen MK2 Tiguan utilizes 6061-T6 Aluminum with precision-machined slots to allow users to maintain factory camber and caster alignment specifications. This restored caster can decrease the clearance of large tire setups while making the suspension more responsive. For this reason, we also offer a slot for camber-only correction. 034Motorsport recommends utilizing the camber and caster correction slot for the best performance if your tire size allows it.

Density Line Adjustable Rear Toe Links

Lifting your Q3 or Tiguan wouldn’t be possible without the addition of Density Line Adjustable Rear Toe Links. These adjustable toe links enable adequate alignment adjustment at the newly raised ride height, as the fixed, stamped steel factory rear toe links do not provide sufficient adjustment.

Density Line Adjustable Rear Toe Links offer the range and precision needed to set proper rear toe after a lift, improving stability, tracking, and tire wear. Their adjustability makes alignment changes easy, whether you’re restoring factory geometry or tuning for off-road use.

Each link uses Forged Steel Threaded Rod Ends with 90-durometer rubber bushings for durability and reduced deflection, ensuring consistent suspension geometry through rough terrain and heavy articulation.

Features:

• CNC-Machined from 6061-T6 Aluminum with Clear Anodized Finish
• Front Lift: 34mm (1.3")
• Rear Lift: 13mm (1.18")
• Minimal NVH Added
• Easily Reversible, Completely Bolt-In
• Aluminum Won't Pack Out Over Time
• Built-in Camber and Caster Offset to Retain Factory Alignment Specs
• Camber Only Option to Prevent Fender Liner Rubbing on Big Tire Setups

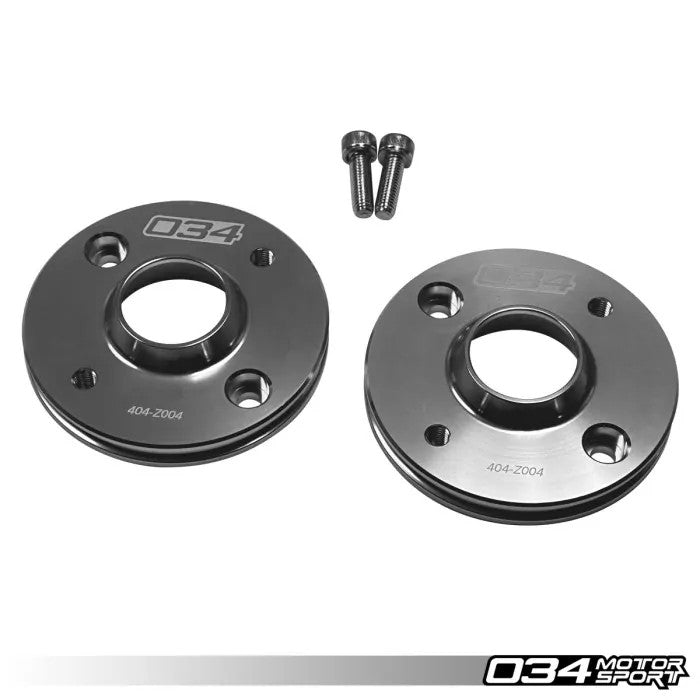

• Spring Centering Cups on the Rear
• Reuses Stock Rear Spring Isolator
• Includes Density Line Toe Links for Precise Toe Adjustments to Improve Stability, Tracking, and Tire Wear

Some images may be for illustration purposes only.
