Boot Button Reverse Camera (3V0 827 566)
Boot Button Reverse Camera (3V0 827 566)
SKU:BUTTONCAM1
1 in stock
Couldn't load pickup availability
Boot Button Reverse Camera (3V0 827 566)

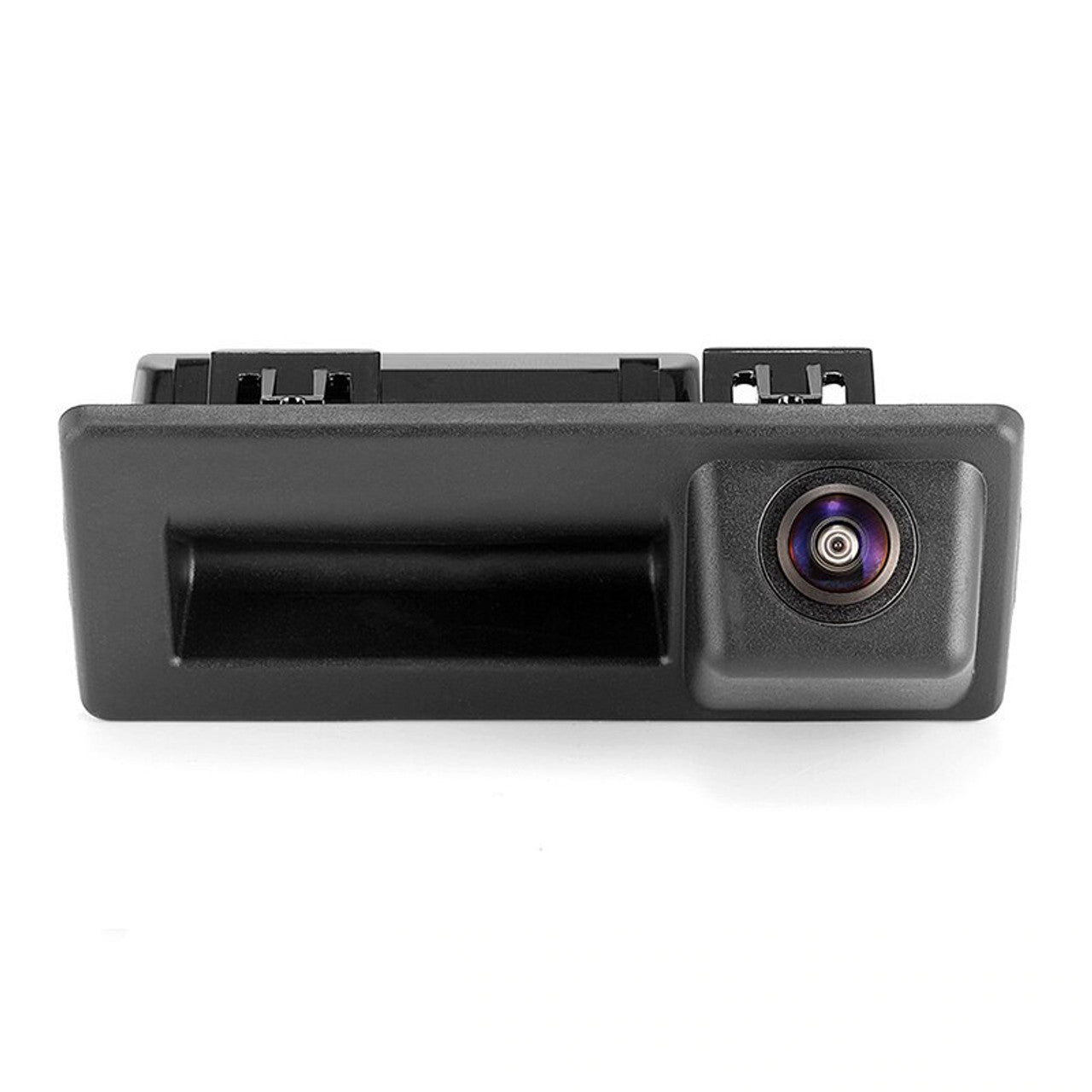

Upgrade your vehicle with a discreet, factory-style reversing camera designed to replace the original boot release button. This integrated camera combines the boot release function with a wide-angle reversing camera, providing a clean installation without the need for an externally mounted camera.
Designed for selected Volkswagen Group vehicles, this camera provides a clear rear-view image when connected to a compatible infotainment system, helping with reversing and parking manoeuvres.
Key Highlights
Factory-Style Installation
Replaces the original boot release button, keeping the camera neatly integrated into the vehicle.
Integrated Boot Release
Retains the boot release function while adding a reversing camera.

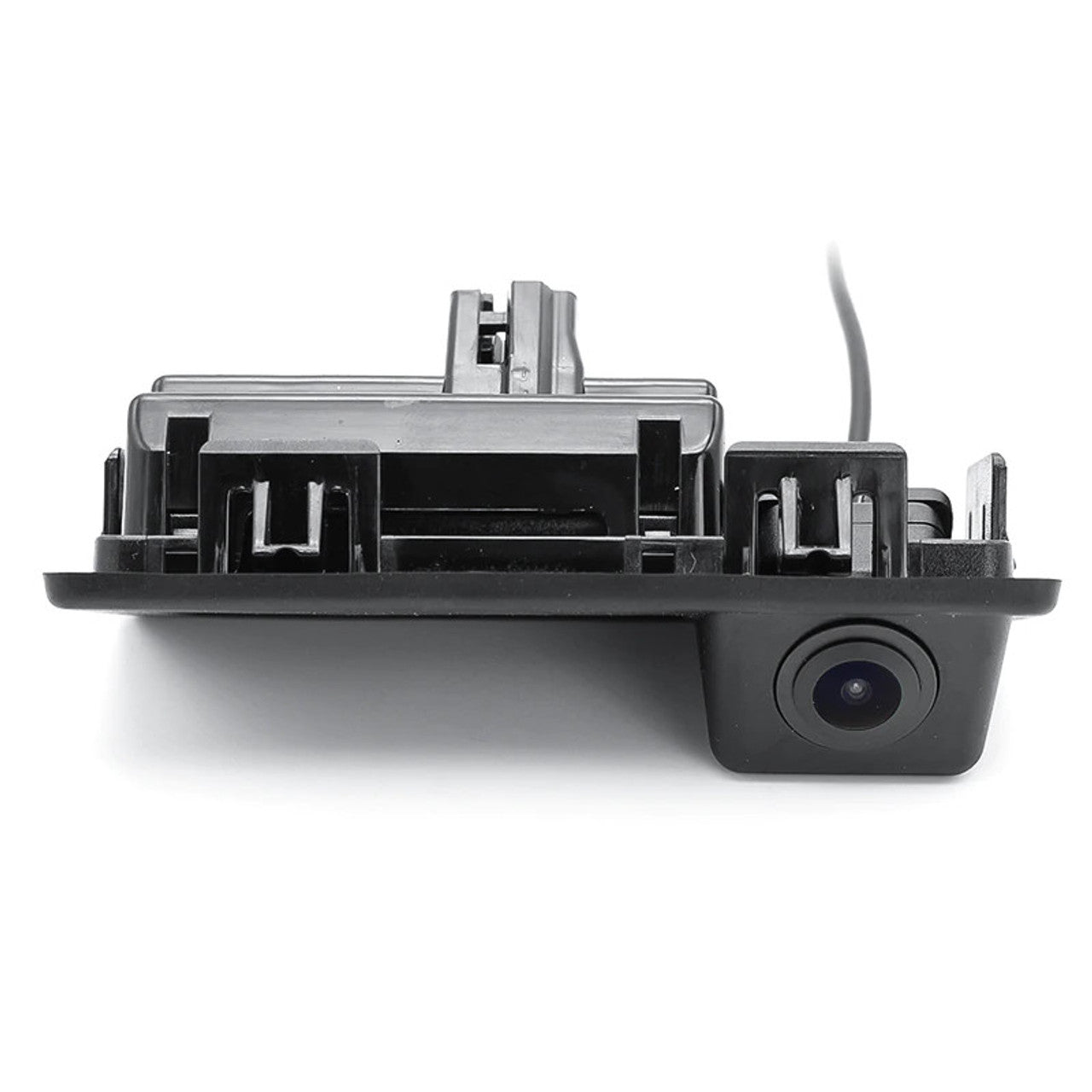

170° Wide-Angle View
Wide-angle camera lens helps provide improved visibility behind the vehicle when reversing.
NTSC Video Output
NTSC-format composite video output for use with compatible displays and camera interfaces.
Wiring Included
Supplied with a 6-metre video cable and the associated power and trigger wiring for installation.
OEM-Style Appearance
Designed to sit in the original boot release location for a discreet, integrated finish.

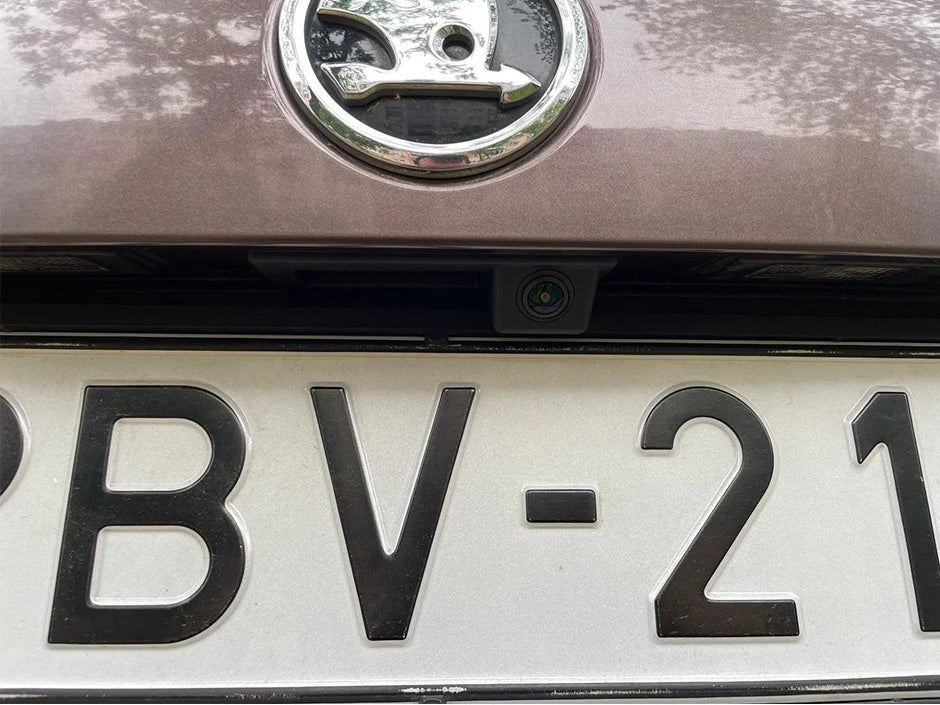

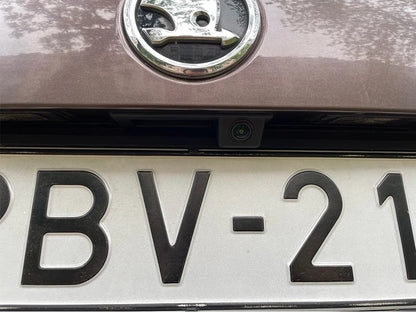

Designed for a Factory-Style Finish
Unlike universal cameras mounted above the number plate or drilled into the bumper, this camera is integrated into a replacement boot release handle. This helps maintain the original appearance of the vehicle while adding useful reversing camera functionality.
Compatible Vehicles
This camera is designed as a replacement for the boot release handle associated with OEM reference 3V0 827 566 and is suitable for selected vehicles including:
Audi
- A3 Mk3 8V Facelift (2016–2019)
- A4 B9 (2016–2019)
- A5 B9 (2016–2019)
- A6 C8 (2016–2019)
Skoda
- Octavia Mk3 5E Facelift (2017–2021)
- Rapid (2016–2019)
- Superb Mk3 3V (2015–2019)
- Yeti (2014–2018)
Volkswagen
- Caddy Mk3 Facelift, Up & Over Door Only (2016–2020)
- Lupo Mk2 (2015–)
- Tiguan Mk2 (2016–)
Important Vehicle Compatibility Information
Vehicle compatibility must be confirmed before ordering. The same vehicle model may have different boot release handles depending on model year, body style and original equipment.
Please compare the dimensions, mounting points and connector arrangement of your existing boot release handle against the product photographs. The vehicle list above is a guide and does not guarantee fitment to every vehicle listed.
Camera Specifications
| Reference Part Number | 3V0 827 566 |
| Camera Type | Integrated boot release reverse camera |
| Video Format | NTSC |
| Viewing Angle | 170° |
| Operating Voltage | 12V DC |
| Video Cable Length | Approximately 6 metres |

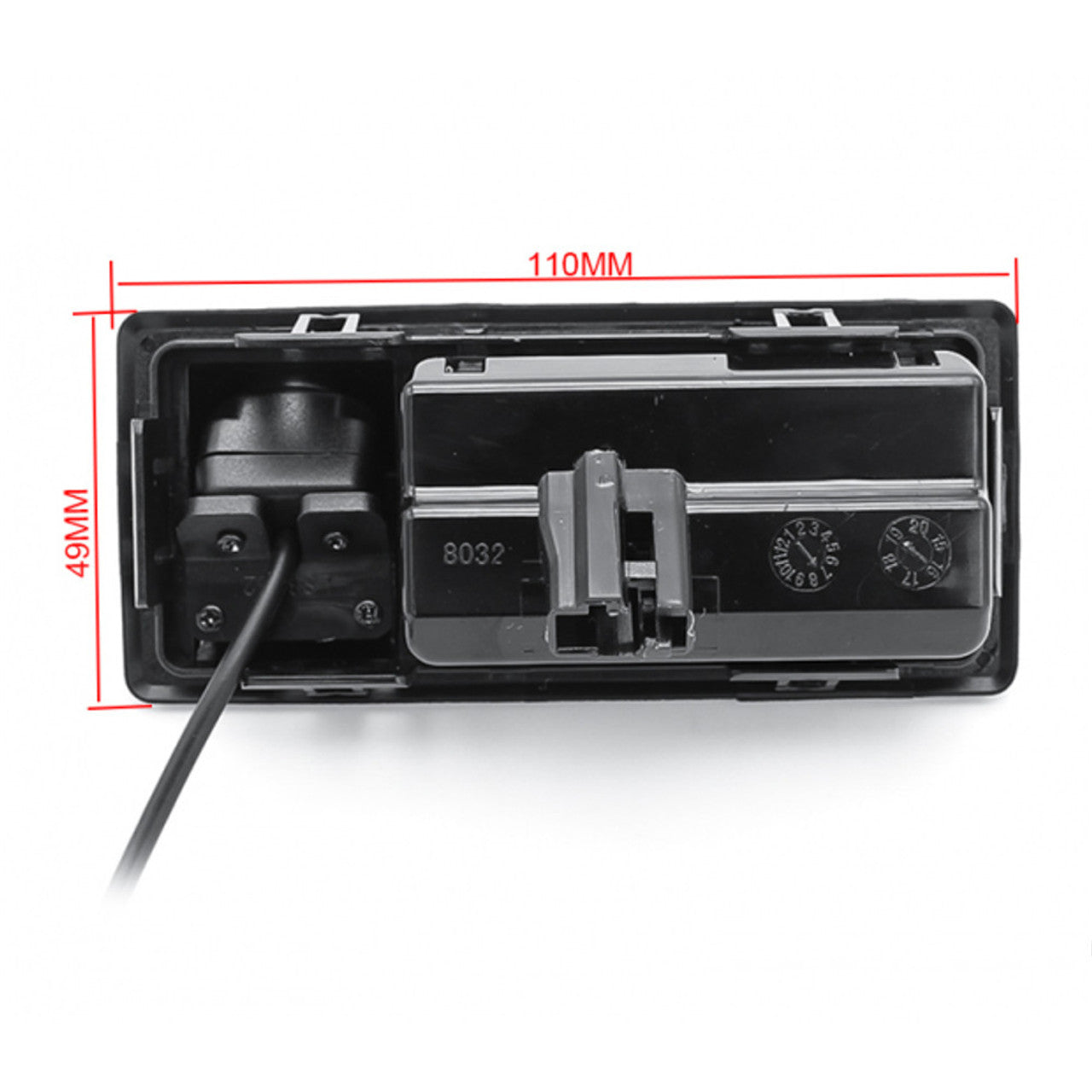

| Approximate Size | 110mm x 50mm |
| Installation Location | Original boot release handle position |
What's Included?

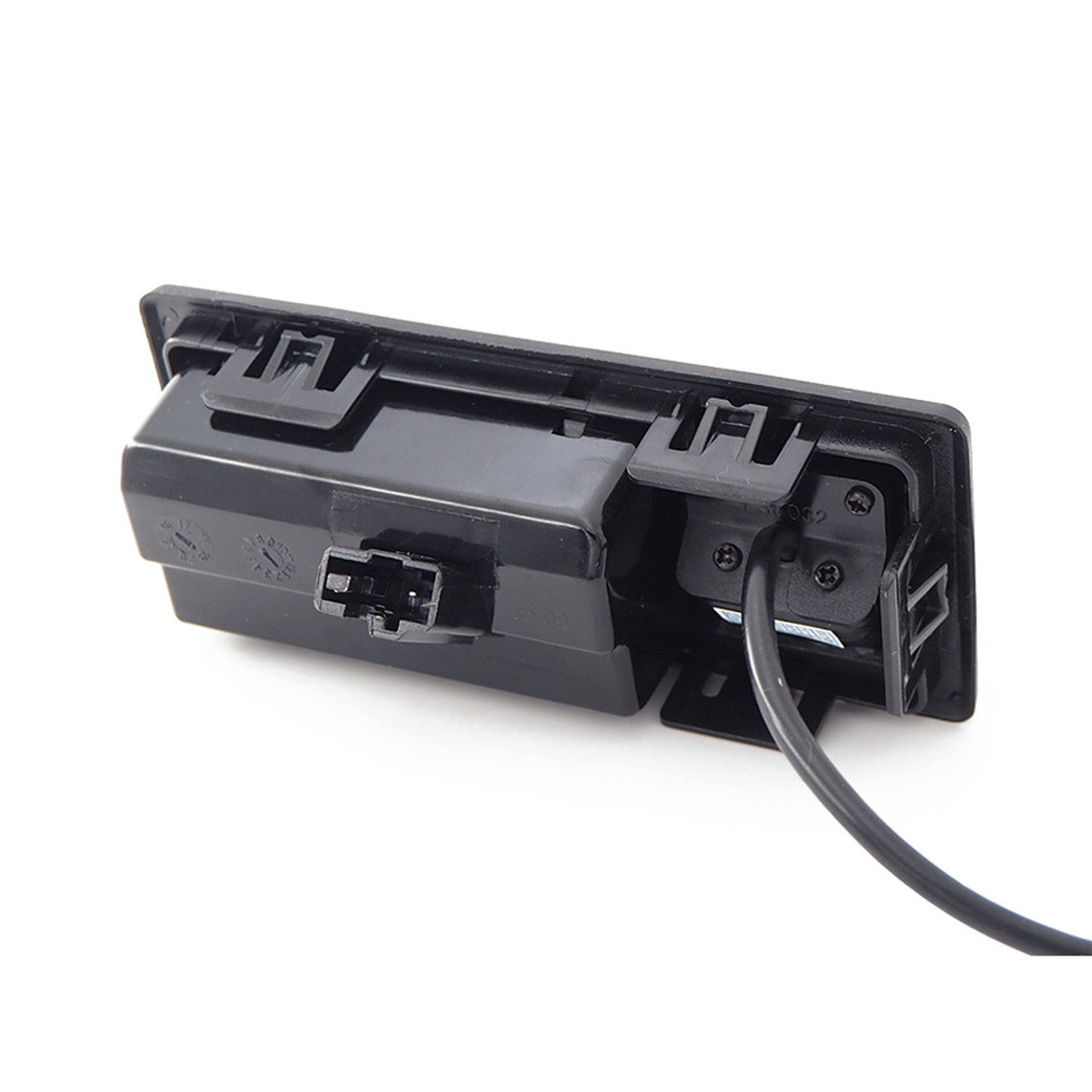

Reverse Camera Assembly
1 x Boot release handle with integrated reversing camera.

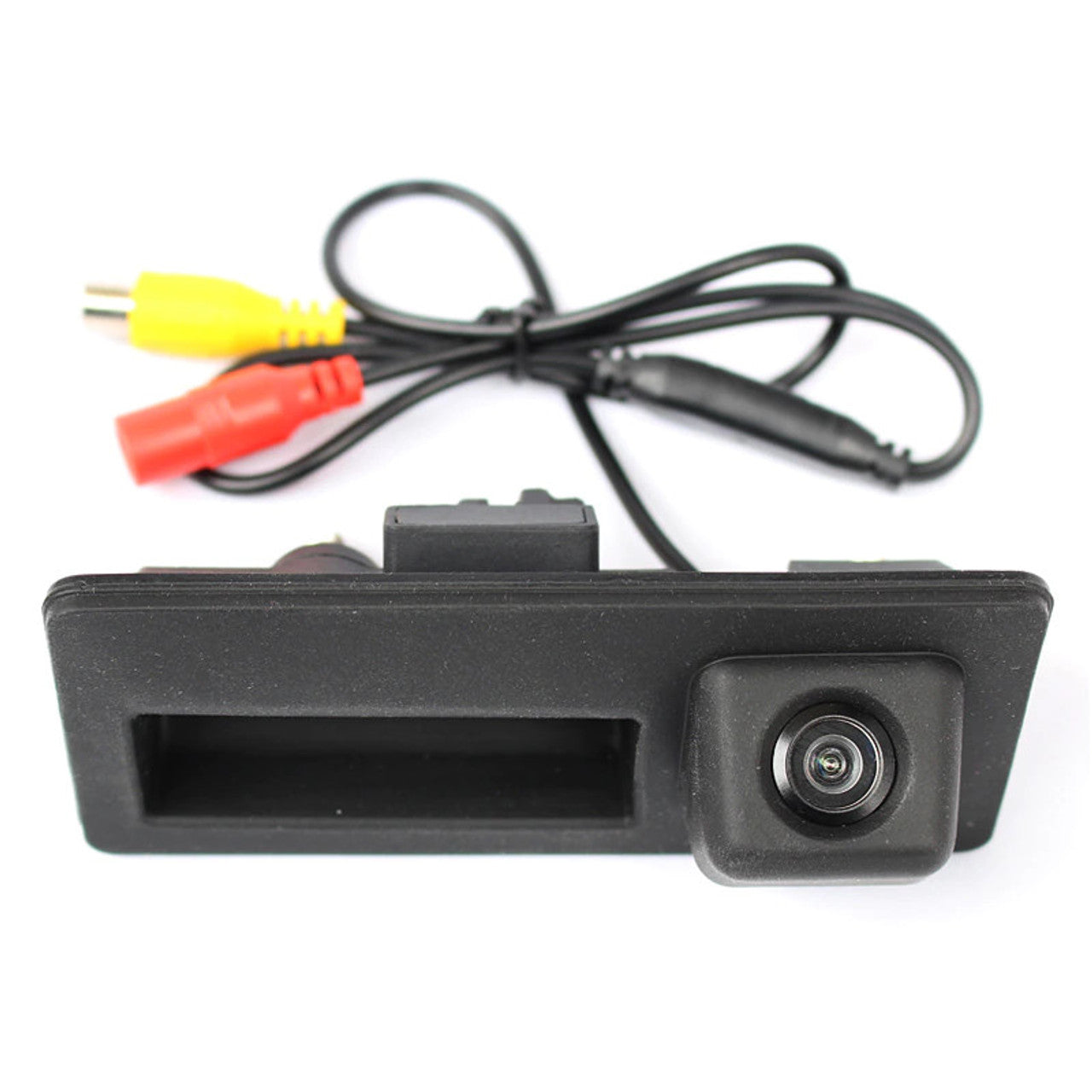

Video Cable
Approximately 6 metres of composite video cable for connecting the camera to the display or interface.
Power & Trigger Wiring
Associated wiring connections for the camera power supply and reversing signal.
Factory Radio Compatibility
When connecting this camera to an original Volkswagen Group infotainment system, a suitable camera interface or adapter may be required to provide the correct video connection.
Factory Head Unit Adapter May Be Required
This camera uses an aftermarket composite video connection. If you are installing it with an original factory head unit, you must check that the radio supports a reversing camera and that you have the correct camera adapter.
We stock compatible MIB camera adapters, which can be viewed here.
Installation & Wiring Information
The camera replaces the original boot release handle and connects to a compatible display or infotainment system using the supplied video wiring.
The camera requires a suitable 12V DC power supply. On some Volkswagen Group vehicles, the reversing light circuit may be controlled by the vehicle electronics and may not provide a sufficiently stable supply for the camera.
Power Supply Considerations
If the camera is powered directly from an unsuitable reversing light supply, the image may flicker, become distorted or disappear.
Where necessary, a suitable relay arrangement or filtered power supply should be used to provide a stable camera voltage. Additional components required for this are not included.
Vehicle coding may also be required to activate the reversing camera function on compatible factory infotainment systems. The correct installation procedure depends on the vehicle and radio fitted.
Frequently Asked Questions
Does this camera replace the original boot release button?
Yes. This camera is integrated into a replacement boot release handle designed to fit selected compatible vehicles.
Will the boot release still work?
Yes. The replacement assembly incorporates a boot release function alongside the reversing camera, provided it is correctly fitted to a compatible vehicle.
Will this work with my original factory radio?
It may be compatible, depending on the radio fitted. Factory infotainment systems may require a suitable reversing camera adapter and vehicle coding. Please check your radio model before purchasing.
Does the camera include a video cable?
Yes. An approximately 6-metre video cable is included, along with associated power and trigger wiring.
Can I connect the camera directly to the reversing light?
The camera requires a stable 12V supply. Some vehicles use monitored reversing light circuits that can cause camera image interference. A relay or suitable filtered supply may be required.
Does this camera require coding?
When fitting to a factory infotainment system, coding may be required to enable the reversing camera input. Requirements depend on the vehicle and radio configuration.
Is this a genuine Volkswagen Group camera?
No. This is an aftermarket replacement camera designed around the original boot release handle fitment. The reference number is provided to help identify the compatible handle style.
How do I check if this will fit my vehicle?
Compare the dimensions, mounting arrangement and connector of your existing boot release handle with the product photographs. If you are unsure, contact AWTuning with your vehicle registration and a photograph of the original handle.
Why Buy From AWTuning?
AWTuning specialises in Volkswagen Group vehicle electronics, infotainment upgrades and reversing camera installations. We can help identify the correct camera arrangement and any additional adapters required for compatible vehicles.
Please note that unless the item is listed as in stock, this is likely an item sent direct from manufacturer thus classed as a special order item. Whilst this does not normally effect delivery times, if you would like an up to date delivery estimate please contact us
View full details
| Confirmed Applications | ||||||
| Audi | Seat | Skoda | Volkswagen | BMW | Mini | Toyota |
|
A3 8V A4 B9 A5 B9 A6 C8 RS3 8V RS4 B9 RS5 B9 RS6 C8 S3 8V S4 B9 S5 B9 S6 C8 |
Octavia MK3 (5E) Superb MK2 (3T) |
Caddy 2K Tiguan MK2 |
||||
