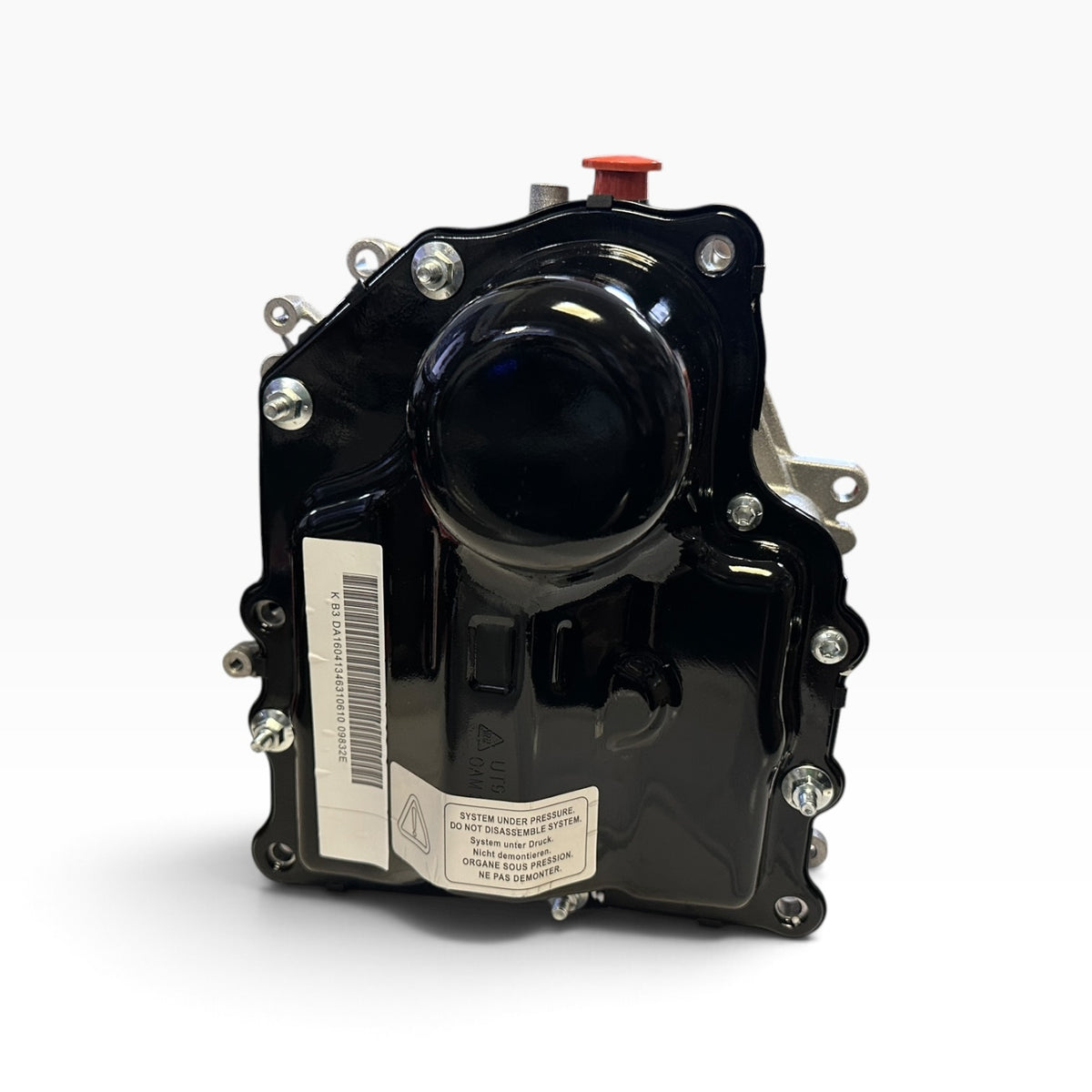

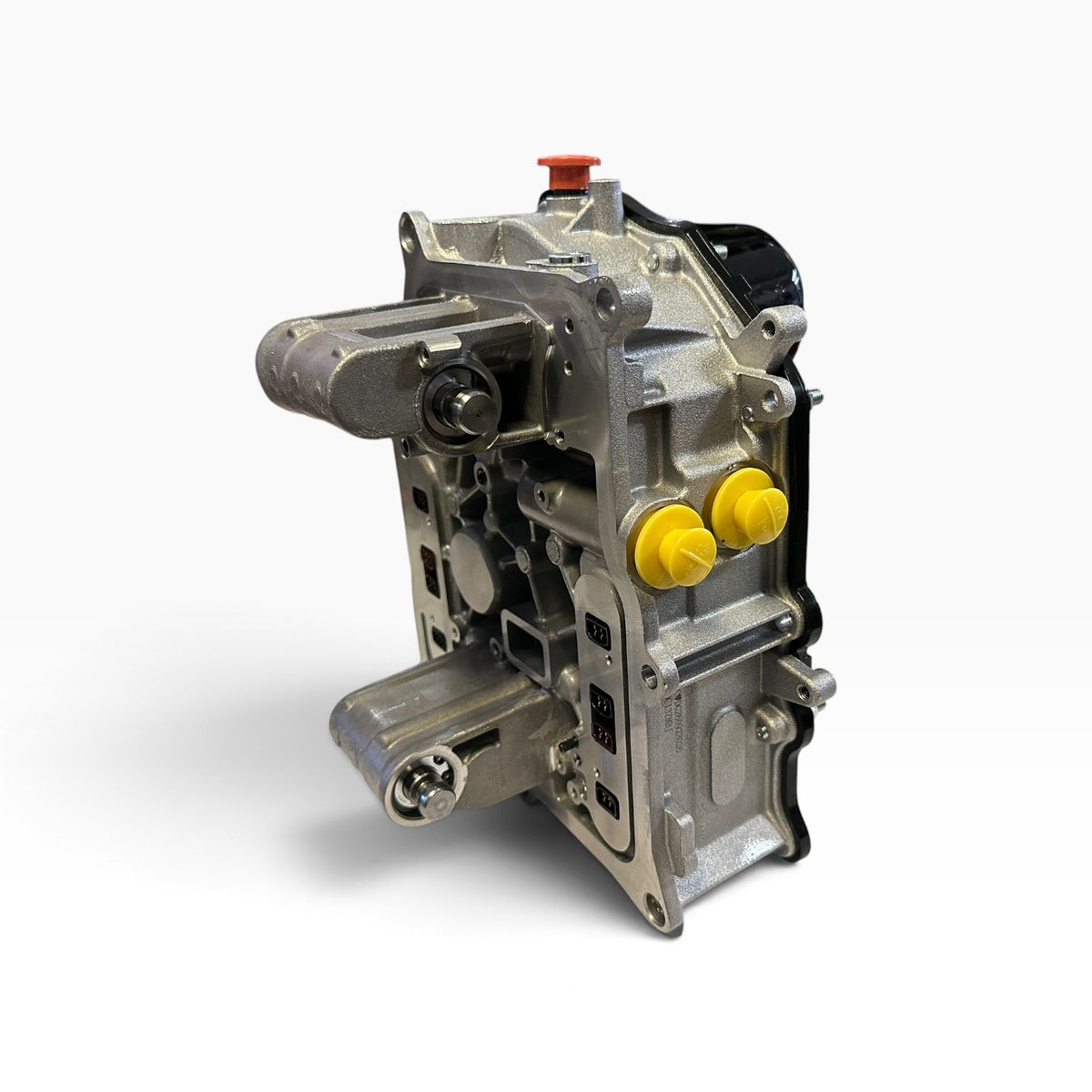

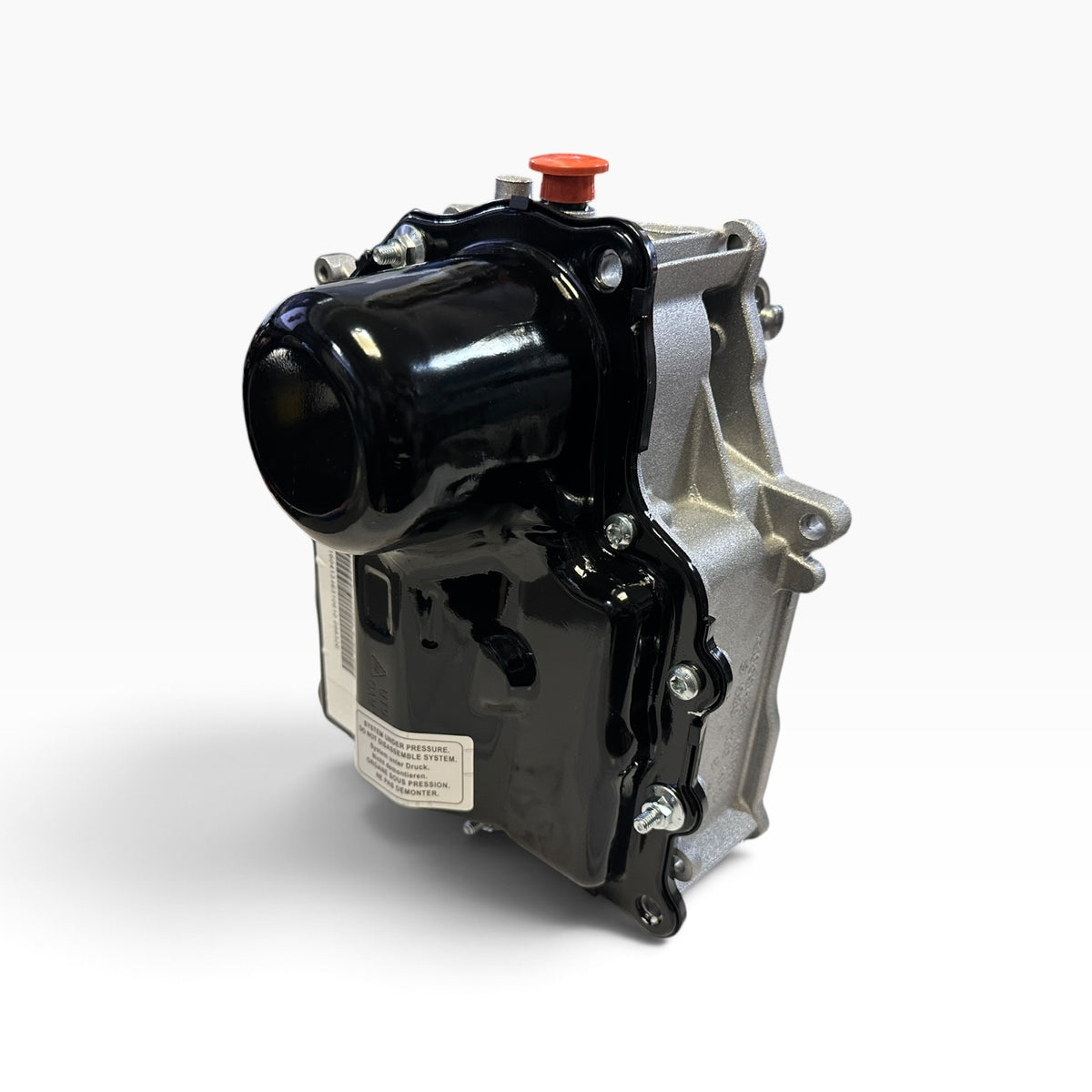

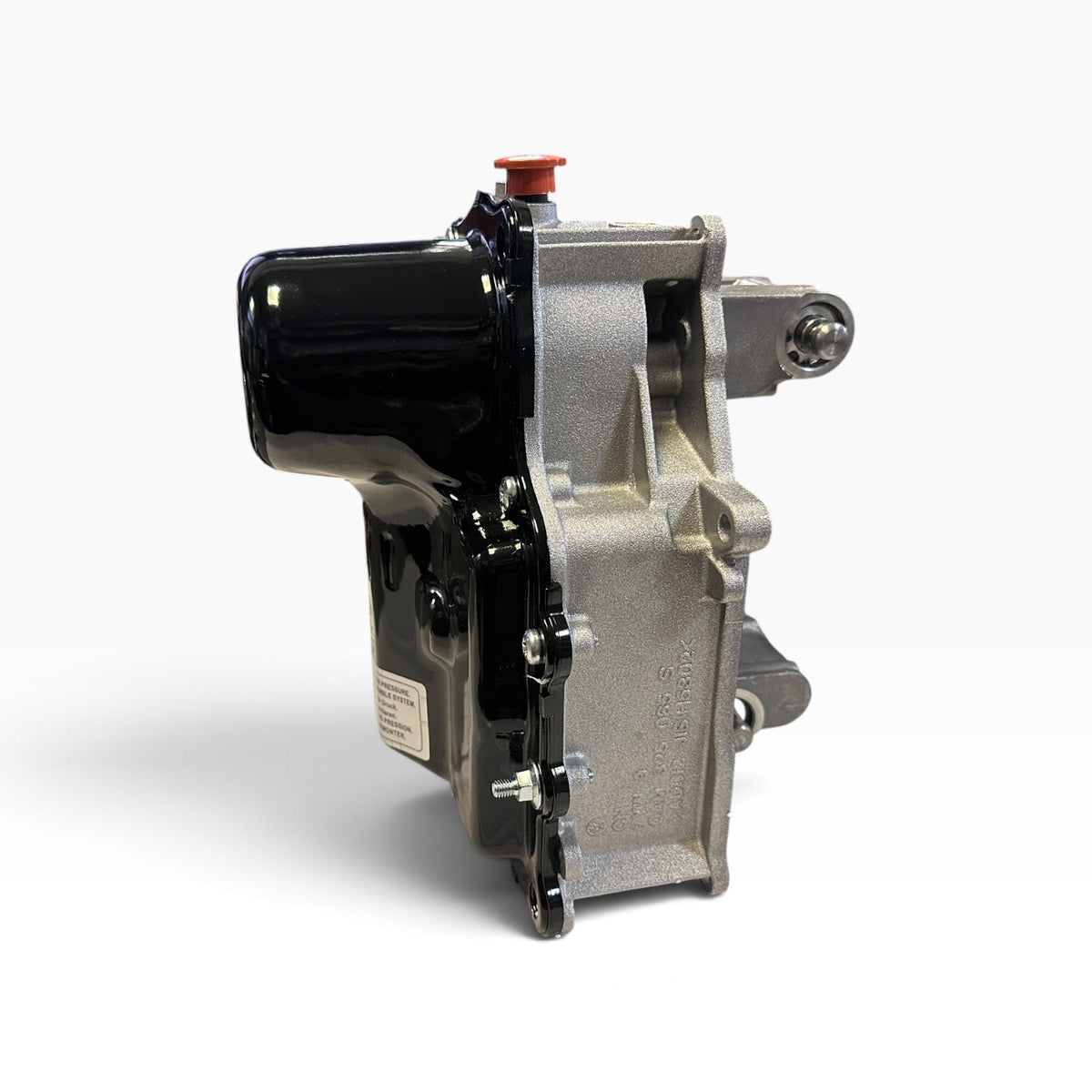

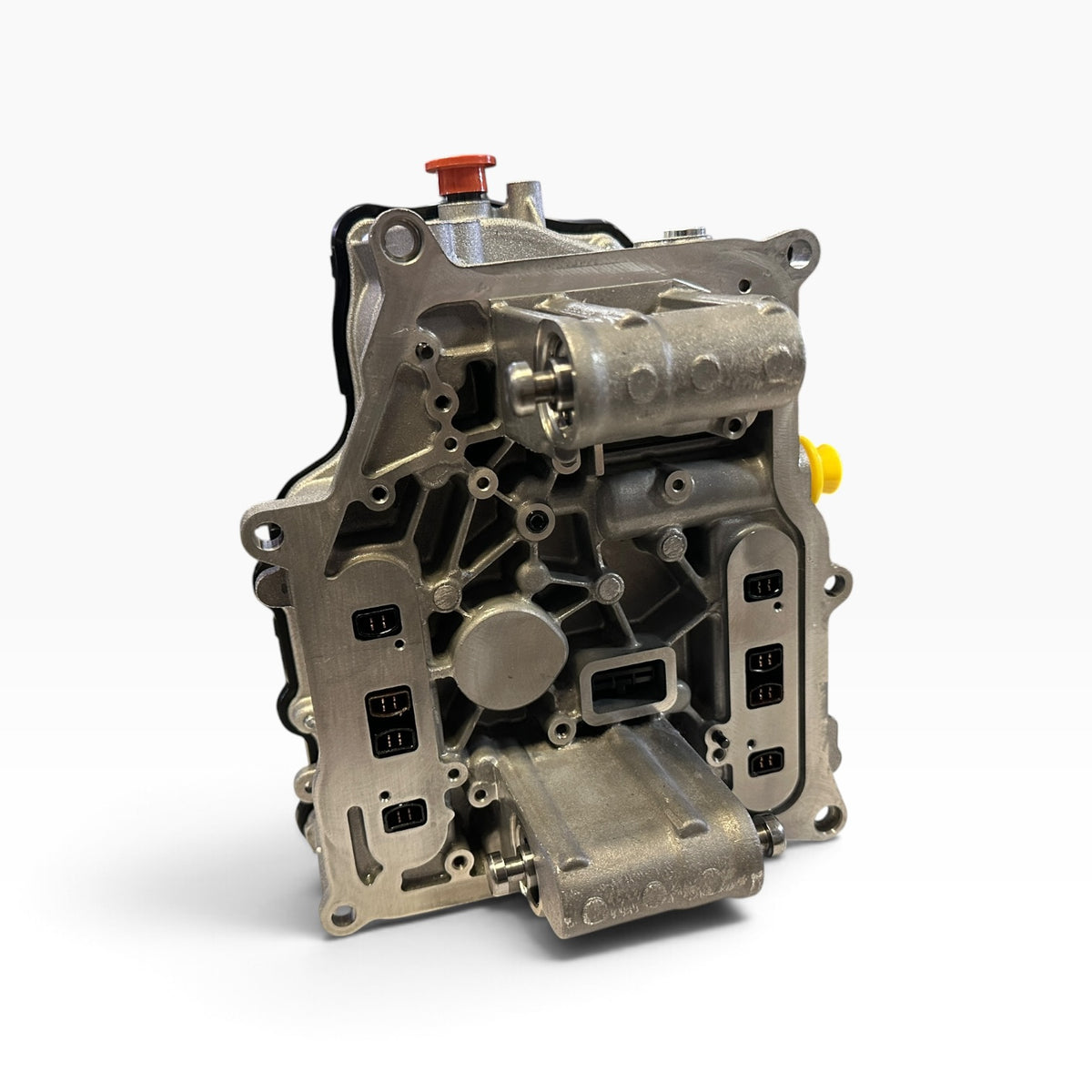

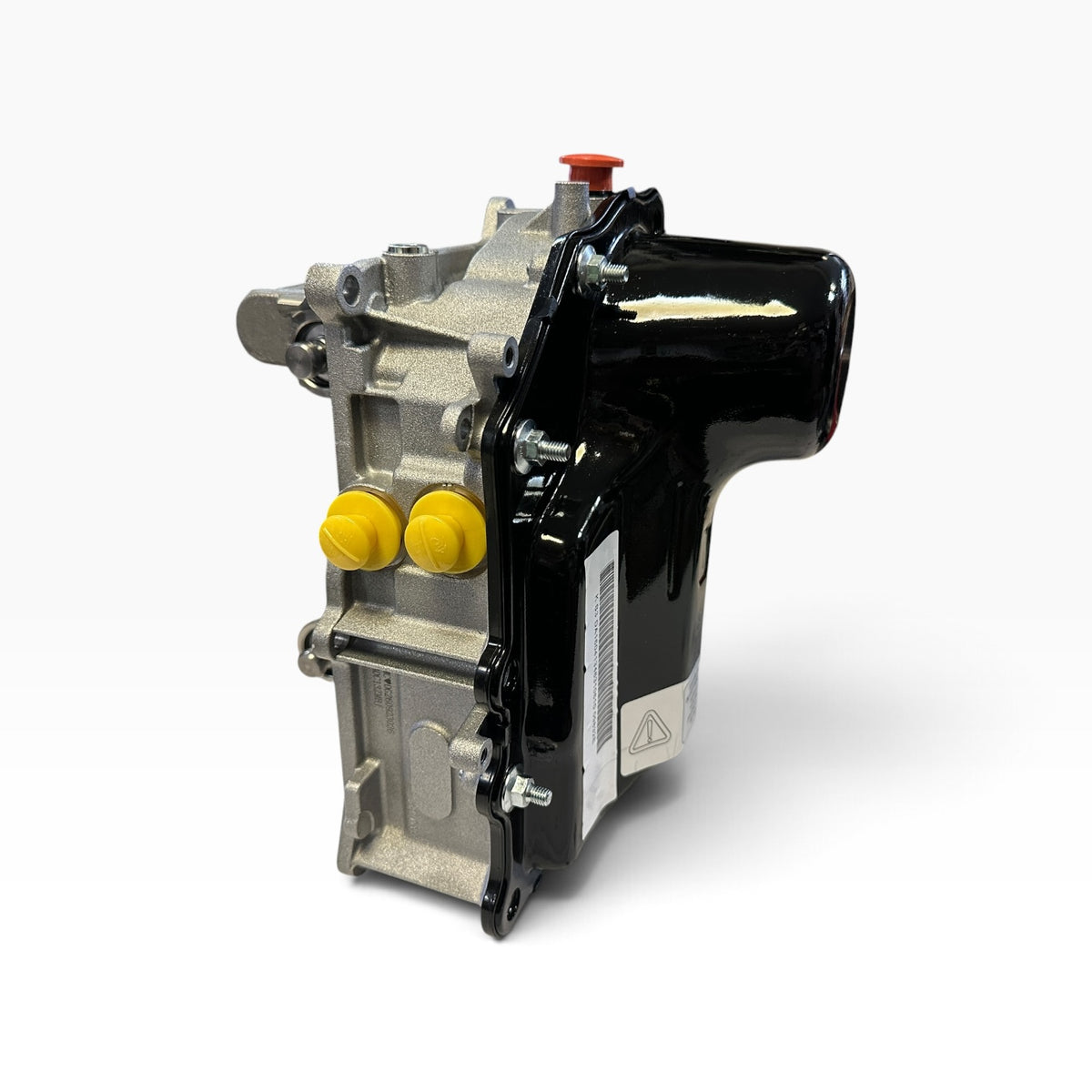

DQ200 0AM/0CW DSG 7-Speed Mechatronic Hydraulic Valve Body Assembly
DQ200 0AM/0CW DSG 7-Speed Mechatronic Hydraulic Valve Body Assembly
SKU:AWT-DQ200-MECH
This is a special order part and is normally dispatched in 14 working days
Couldn't load pickup availability
DQ200 0AM/0CW DSG 7-Speed Mechatronic Hydraulic Valve Body Assembly
Brand-new replacement hydraulic mechatronic assembly for selected Volkswagen Group vehicles fitted with the DQ200 0AM/0CW 7-speed dry-clutch DSG transmission.
This assembly replaces the hydraulic section of the mechatronic unit, providing an alternative to rebuilding a damaged or faulty original hydraulic unit. Suitable for professional gearbox repairs where the existing electronic control unit remains serviceable and compatible with the replacement assembly.
Important: Electronic Control Unit Not Included
This product is supplied without the electronic transmission control unit (TCU/TCM).
Your existing compatible electronic control unit must be transferred to the replacement hydraulic assembly. If your original control unit is faulty or damaged, this product alone will not rectify that issue.
Product Features
- Brand-new replacement hydraulic mechatronic assembly
- Designed for selected DQ200 0AM/0CW 7-speed DSG transmissions
- Replacement hydraulic valve body with integrated hydraulic components
- Allows reuse of the original compatible electronic control unit
- Suitable for professional mechatronic repair and replacement
- No exchange unit required
What Does the Hydraulic Mechatronic Assembly Do?
The DQ200 mechatronic system combines electronic control with an electro-hydraulic assembly responsible for operating the gearbox clutches and gear-selection mechanisms.
The hydraulic assembly uses an electric pump, pressure accumulator and control valves to generate, maintain and distribute the hydraulic pressure required for gearbox operation.
Over time, internal hydraulic components can develop faults, including pressure loss, leakage, valve problems or failure to maintain sufficient operating pressure.
Common Symptoms of Hydraulic Mechatronic Problems
- Gearbox fails to engage drive or reverse
- Transmission warning message or flashing gear indicator
- Hydraulic pressure fails to build or maintain correctly
- Excessive hydraulic pump operation
- Gear selection faults or gearbox emergency mode
- Stored hydraulic pressure-related diagnostic fault codes
Common Associated Fault Codes
- P17BF - Hydraulic pump play protection
- P189C - Function restriction due to insufficient pressure build-up
These fault codes can have several possible causes, including hydraulic leakage, pump faults, accumulator problems or other mechatronic defects. Correct diagnosis is required before replacement.
Vehicle Compatibility
Suitable for selected Volkswagen, Audi, SEAT and Skoda vehicles equipped with the DQ200 0AM 7-speed dry-clutch DSG transmission.
Common Vehicle Applications
- Volkswagen: Golf, Polo, Passat, Jetta, Touran, Scirocco and other applicable models
- Audi: A1, A3 and other applicable models
- SEAT: Ibiza, Leon, Altea and other applicable models
- Skoda: Fabia, Octavia, Superb and other applicable models
Please Check Compatibility Before Ordering
Not every DQ200 mechatronic variant is interchangeable. Please verify your original hydraulic assembly, gearbox version and electronic control unit compatibility before ordering. Vehicle model alone is not sufficient to confirm fitment.
Installation Information
The original electronic transmission control unit must be removed from the existing mechatronic and correctly installed onto the replacement hydraulic assembly.
Installation requires specialist knowledge of DQ200 mechatronic systems, correct hydraulic fluid handling, appropriate sealing procedures and suitable diagnostic equipment.
Following installation, the mechatronic system must be checked for correct operation and the necessary gearbox basic settings and adaptations carried out in accordance with the relevant repair procedures.
Professional Installation Recommended
This is a specialist transmission component intended for professional installation. Incorrect fitting, incompatible components or failure to carry out the required setup procedures may result in gearbox malfunction or damage.
Product Information
AWTuning Part Number: AWT-DQ200-MECH
Transmission: DQ200 / 0AM
Gearbox Type: 7-Speed Dry-Clutch DSG
Component: Hydraulic Mechatronic Assembly
Condition: New
Electronic Control Unit: Not Included
Frequently Asked Questions
Is this a brand-new or refurbished unit?
This product is supplied as a new replacement hydraulic mechatronic assembly, not as a used or exchange unit.
Does this include the electronic control unit?
No. The electronic transmission control unit (TCU/TCM) is not included. Your original compatible control unit must be transferred to the replacement hydraulic assembly.
Will this repair a faulty transmission control unit?
No. This product replaces the hydraulic section of the mechatronic system. If the electronic control unit itself is faulty, it will require separate diagnosis, repair or replacement.
Does my original unit need to be returned?
No. This product is sold outright and does not require an exchange or the return of your original hydraulic assembly.
Will this fit every DQ200 gearbox?
No. There are different DQ200 mechatronic and hydraulic assembly variants. Compatibility must be confirmed against the original components and gearbox version before ordering.
Will the gearbox need coding or adaptations?
When retaining the original compatible electronic control unit, transferring it does not normally require cloning to a different control unit. However, the correct installation procedures, diagnostic checks and applicable gearbox basic settings and adaptations are still required.
Will this repair P17BF or P189C fault codes?
These codes can be associated with hydraulic pressure problems in the DQ200 mechatronic system. However, they do not automatically mean that the complete hydraulic assembly requires replacement. The original fault must be correctly diagnosed before ordering.
Can I install this myself?
We recommend installation by a qualified technician experienced with DSG mechatronic systems. Specialist tools and diagnostic equipment are required to complete the installation and verify correct operation.
| Confirmed Applications | ||||||
| Audi | Seat | Skoda | Volkswagen | BMW | Mini | Toyota |
|
A1 MK1 (8X) A1 MK2 (GBA) A3 8P A3 8V A3 8Y Q2 |
Ateca Ibiza MK5 6J Ibiza MK6 6F Leon MK2 (1P) Leon MK3 (5F) Leon MK4 |
Fabia MK2 (5J) Fabia MK3 (NJ) Kamiq 2019 - Karoq 2017 - Octavia MK2 (1Z) Octavia MK3 (5E) Octavia MK4 (NX) Superb MK2 (3T) Superb MK3 (3V) Yeti |
New Beetle Caddy 2K Golf MK6 Golf MK7 Golf MK8 Jetta MK6 Passat B8 Passat CC Polo 6R/6C Polo AW Scirocco Tiguan MK1 Tiguan MK2 T-Roc |
|||
