ECS Tuning Intake Manifold Lever Arm Fix Kit - 2.0TSI (EA888 Gen1)

Important Compatibility Note:
This kit is not compatible with intake manifolds ending in "BH", which use the revised linkage arm design.

The Problem

The internal intake manifold linkage can wear around the drive hex, allowing the external vacuum operated lever arm to work its way out of the manifold.

Once this happens the tumble flap mechanism becomes disconnected and, under boost pressure, the lever arm can be forced completely out of the manifold creating a significant air leak.

Although simply pushing the arm back into place temporarily restores operation, it will usually pop back out again once the engine is under load.

The Solution

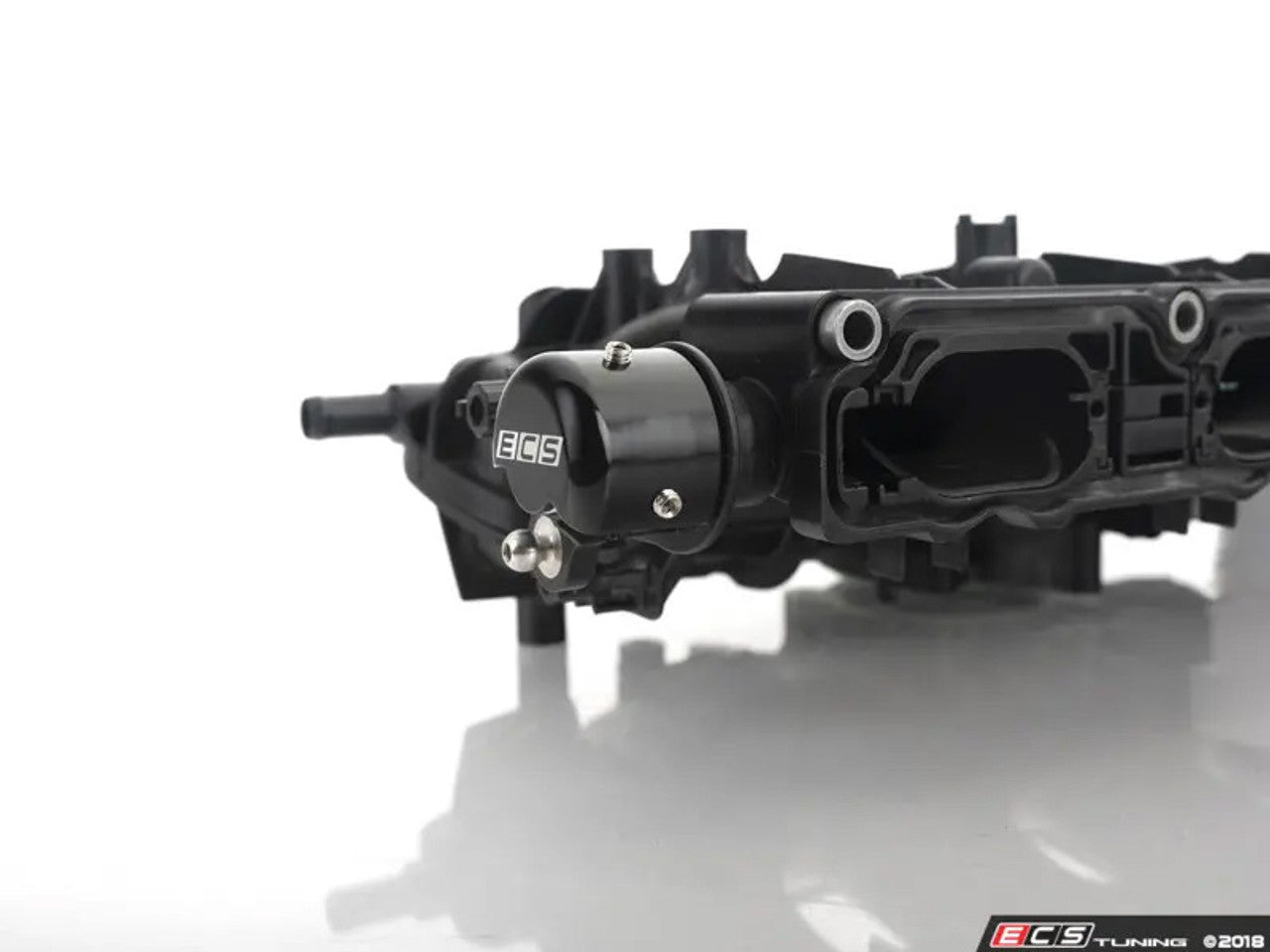

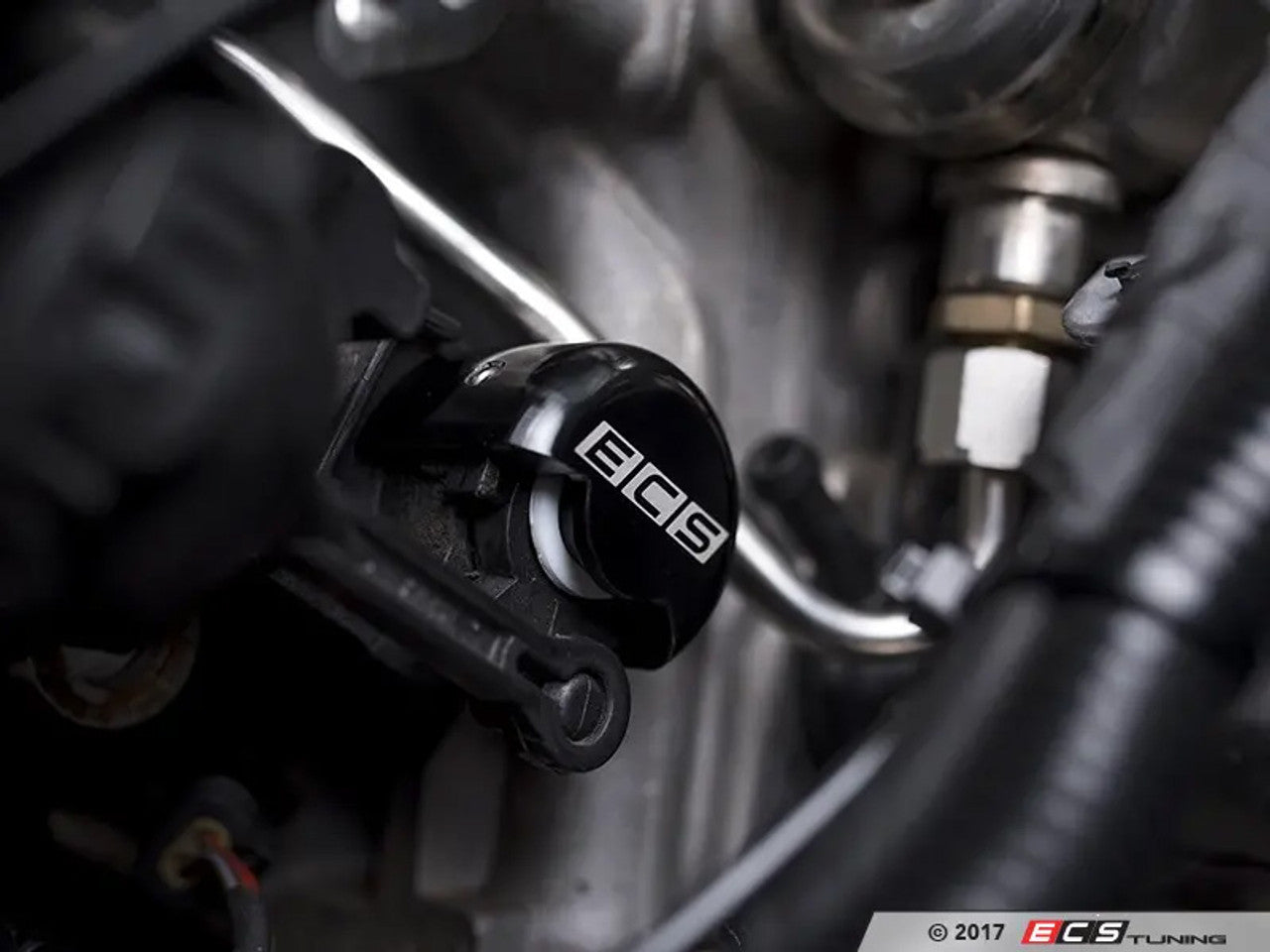

This billet aluminium repair cap securely clamps the original lever arm back into the intake manifold, maintaining correct engagement with the internal linkage whilst preventing the arm from becoming disconnected again.

Instead of replacing the complete intake manifold, this repair offers a far more cost effective solution whilst restoring reliable operation of the runner flap mechanism.

Features

• Precision machined from 6061-T6 billet aluminium
• Type II black anodised finish for corrosion resistance
• Locks the lever arm securely into the intake manifold
• Helps prevent future linkage failures
• Cost effective alternative to replacing the complete intake manifold

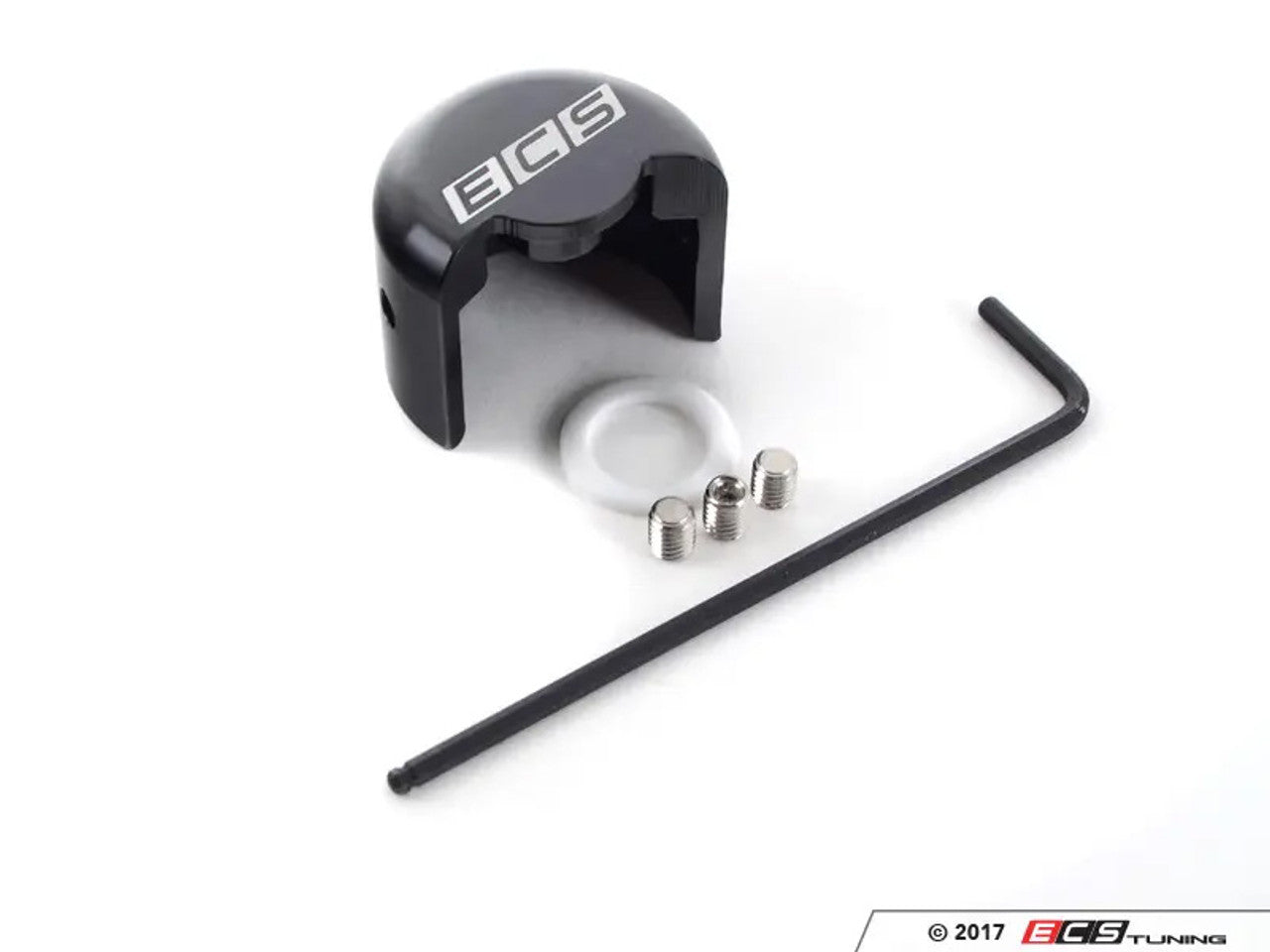

Kit Contents

• Billet aluminium repair cap
• Three non-marring flat point grub screws
• Medium strength threadlocker
• Ball end hex key
• Two PTFE shims

Shim Selection

Thin Shim (0.060")
For later production manifolds with the raised hump.
OE Part Number: 06J133201BD

Thick Shim (0.250")
For earlier production manifolds without the raised hump.
OE Part Numbers: 06J133201G and 06J133201AS

Installation Instructions

A detailed step by step installation guide is available to help you identify the correct shim and fit the repair kit correctly.

View Installation Instructions →
