Ferodo Front Brake Pad Set - PQ35 312/340mm discs

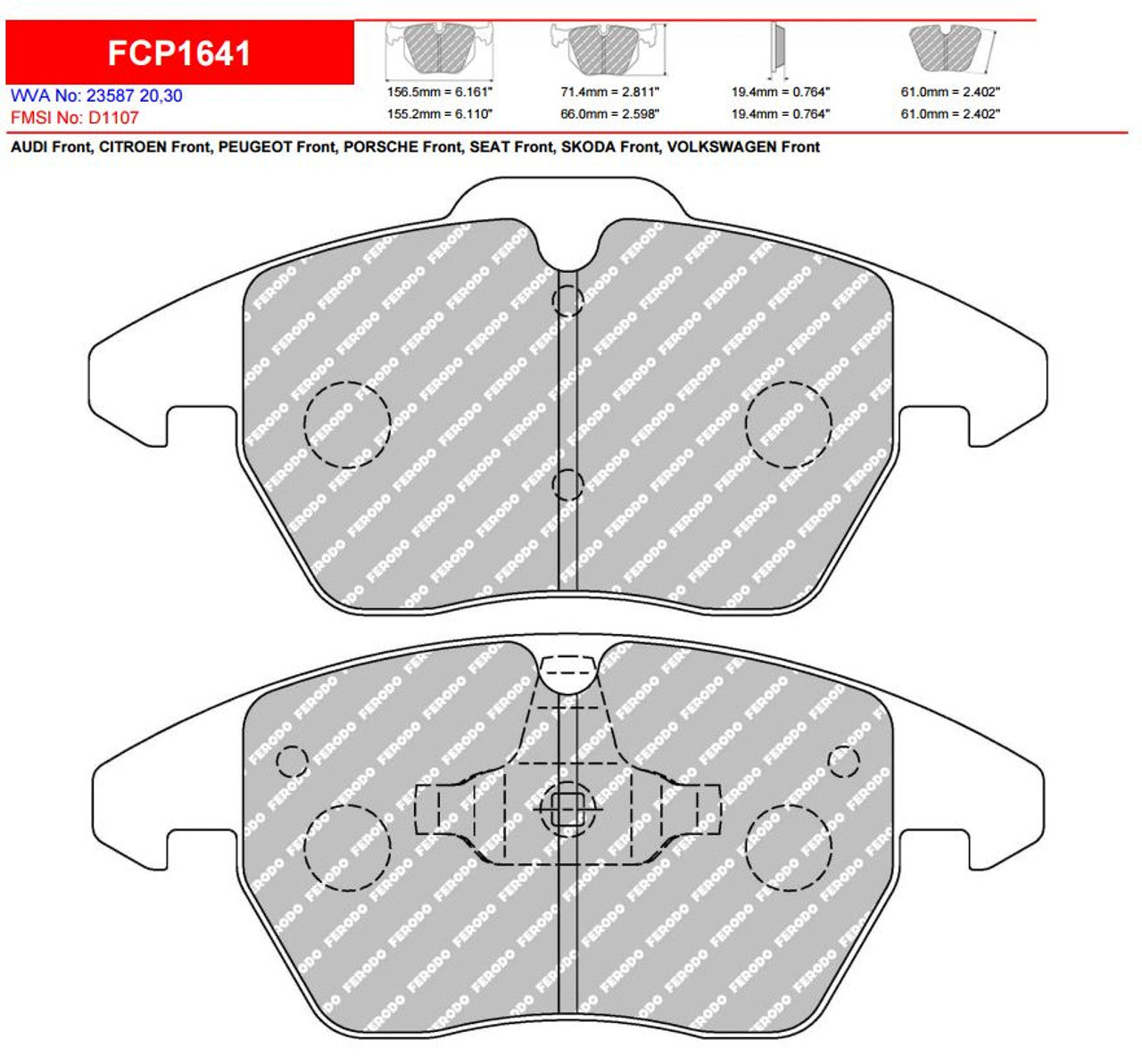

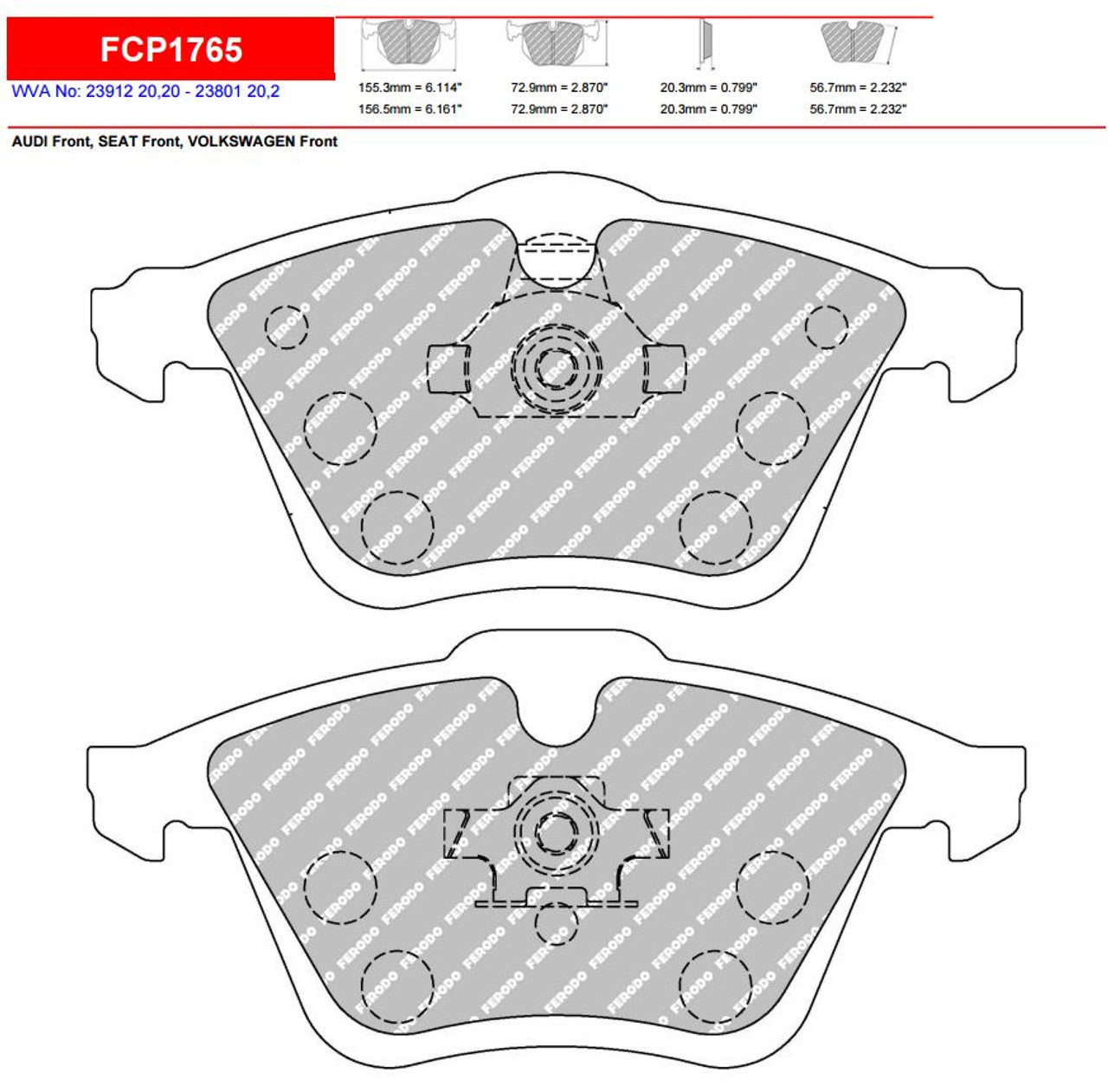

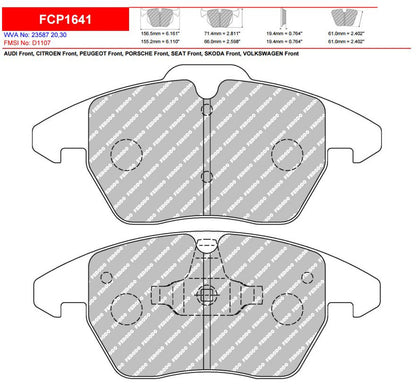

PLEASE CHECK THE PAD DIAGRAM AND DIMESIONS MATCH YOUR VEHICLE, NO REFUND WILL BE GIVEN FOR INCORRECT PARTS ORDERED.

DS Performance
• Designed specifically for road use only
• High friction coefficient (0.46 average)
• Excellent disc life
• Low wheel dust
• Racing "feel"
• Low heat transmission to caliper - thus avoiding fluid boil

DS2500 (H)
• Track day & light race use for all vehicle types
• Road style refinement but with race material ability to withstand heat with respect to life
• Average friction coefficient of 0.42 over working temperature range of 20°-500°C

DS1.11 (W)
•NOT FOR ROAD USE
•Heavy duty endurance material
•Applications - touring car, GT, single seat. Track day for heavier vehicles
•Average friction coefficient 0.46 over working temperature range of 200° - 750° C
• Long life

 DSUNO (Z)
•NOT FOR ROAD USE
•Heavy duty endurance material
•Applications - touring car, GT, single seat, rally
•Average friction coefficient 0.46 over working temperature range of 200° - 750° C
• Long life

DS1.11 (W)
•NOT FOR ROAD USE
•Heavy duty endurance material
•Applications - sprint and endurance races, on cars with and without ABS
•Average friction coefficient 0.46 over working temperature range of 300° - 850° C
• Long life

Precision Engineering
All of the pad back-plates are manufactured from high tensile steel meaning minimum distortion
when subjected to the high clamping forces common in motorsport use.
Pads are manufactured to maintain high tolerances on the pad and back-plate dimensions including :
flatness , parallelism and overall thickness.
This results in a rapid and uniform transmission of pressure from the brake system to the pads.

Thermal Under-layer
Unlike many competitive products all Ferodo Racing brake pads incorporate a thermal under-layer
between the backing-plate and the friction material.
This reduces the brake caliper’s operating temperature by up to 80 deg C and significantly reduces
the risk of boiling the brake fluid which causes a “spongy” feeling in the pedal.

Disc Friendly
Unlike many competitive products Ferodo pads are kind on brake discs.
Ferodo pads are developed to optimize both the pad and disc life. Our philosophy is not to increase
pad life with the casualty of excessive disc wear.

High Controllability
All Ferodo Racing brake pads are engineered to perform with a relatively constant coefficient of friction
(mu) across a wide range of temperatures , pressures and vehicle speeds.
