RacingLine DQ381 401 Bootloader TCU Solution and Dynamic TCU Calibration

Full Dynamic TCU tuning is finally unlocked

If your vehicle is fitted with the DQ381.2 DSG gearbox, your transmission has been the final limiting factor.

Until now, full proper gearbox tuning has not been possible on 2022+ MQB Evo vehicles. This upgrade changes that completely.

The RacingLine DQ381 Mechatronic Board Upgrade removes the factory lock and finally allows full Dynamic TCU calibration, giving your gearbox the control, strength, and intelligence it needs to safely support high torque engine software.

Why TCU access matters

Without proper TCU calibration, even heavily modified vehicles remain restricted.

• Torque limiters actively reduce engine output
• Factory shift points are not optimised for tuned power
• Clutch pressures remain at conservative OEM levels
• Launch control performance is limited
• Shift speeds are slower than the hardware allows
• Manual mode retains forced upshifts

In simple terms, the gearbox becomes the bottleneck.

The RacingLine approach

Some tuning solutions attempt to bypass these limitations by manipulating the engine ECU. This instructs the engine to ignore torque reduction requests from the gearbox.

While this may increase power figures on paper, the gearbox is not actually prepared to handle that additional torque.

With clutch pressures unchanged, the transmission cannot clamp harder to match the load. This results in accelerated clutch wear, reduced reliability, and a gearbox operating outside of its intended safety margins.

That is a workaround. This is a proper solution.

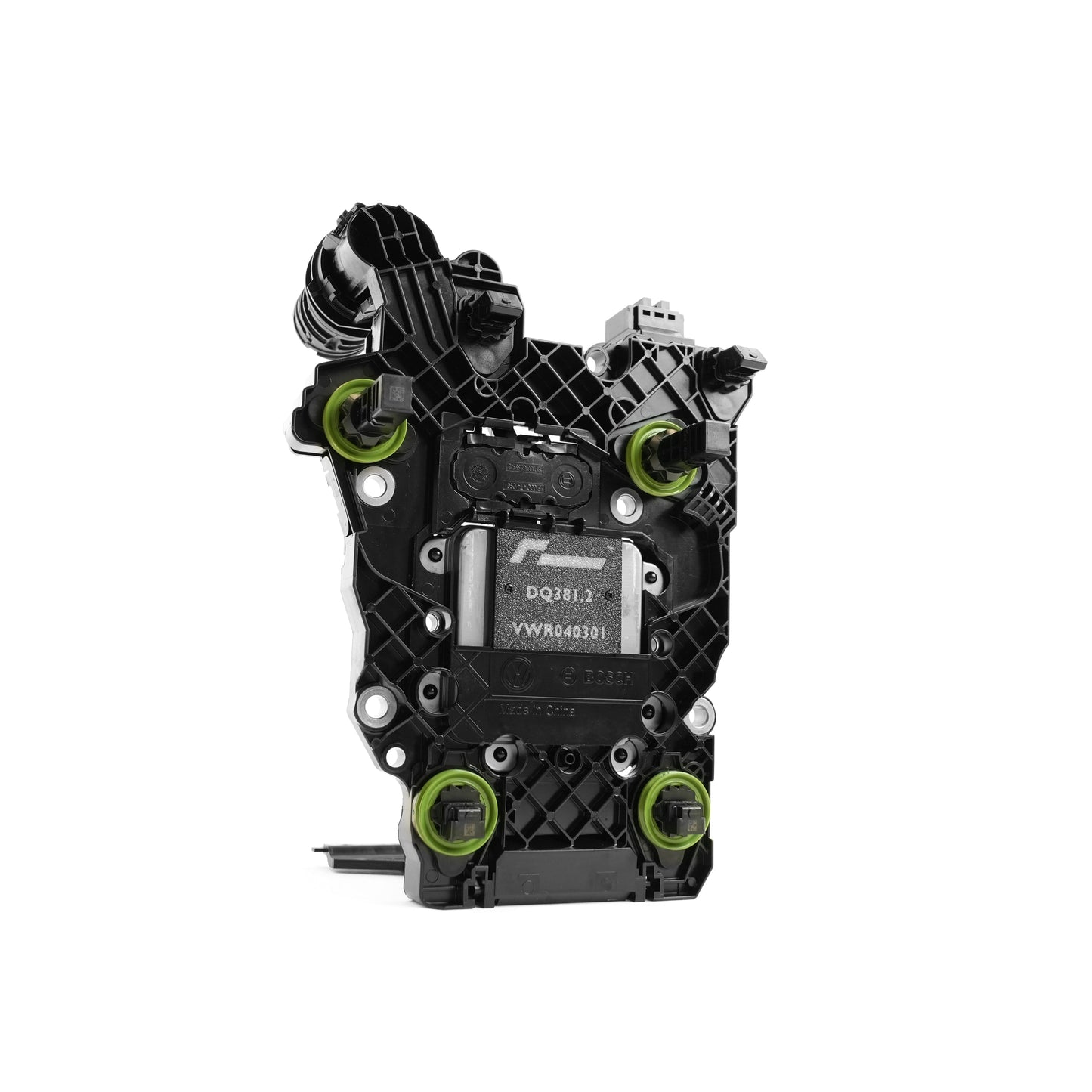

RacingLine Mechatronic Board Replacement

Modern DSG gearboxes are capable of supporting very high performance levels, but only when the TCU is allowed to do its job.

Most 2022+ MQB Evo vehicles are fitted with a locked factory 401 bootloader. This prevents any meaningful TCU calibration.

The RacingLine Mechatronic Board Upgrade solves this at the source.

By replacing the factory locked control board with a tuning enabled Bosch unit, the gearbox is reverted to a tuning friendly 301 bootloader. This unlocks full Dynamic TCU calibration capability, safely, correctly, and exactly as the gearbox was designed to operate.

What is the 401 bootloader

The DQ381 G2 DSG gearbox fitted to most 2022+ Volkswagen Group vehicles uses a locked 401 bootloader.

This factory security measure prevents any modification of the gearbox control unit through normal OBD programming methods.

Until now, this meant full gearbox tuning was simply not possible. Now it is.
